Magnetic materials

PRODUCT INFORMATION
Description

Permanent magnets made of AlNiCo are iron alloys containing aluminum (Al), nickel (Ni), cobalt (Co), and small amounts of other magnetically enhancing components in addition to iron. AlNiCo alloys exhibit high coercivity and a high Curie temperature. They are hard yet brittle, making them impossible to cold work; therefore, they must be manufactured using casting or sintering processes.

Inquire

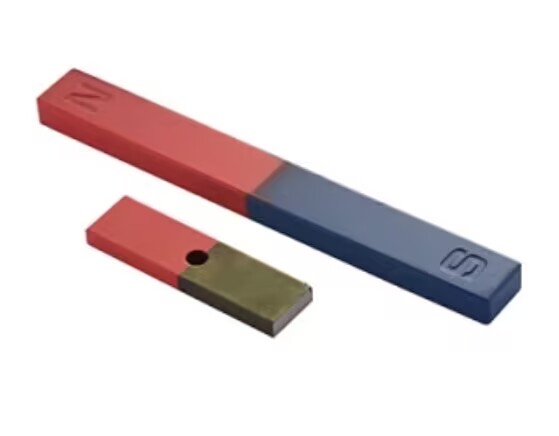

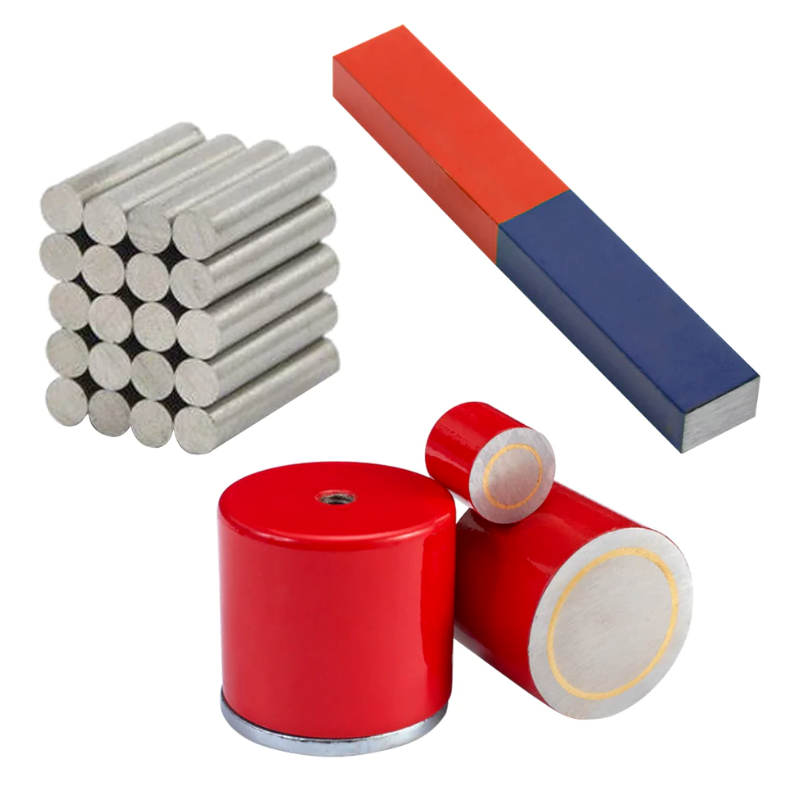

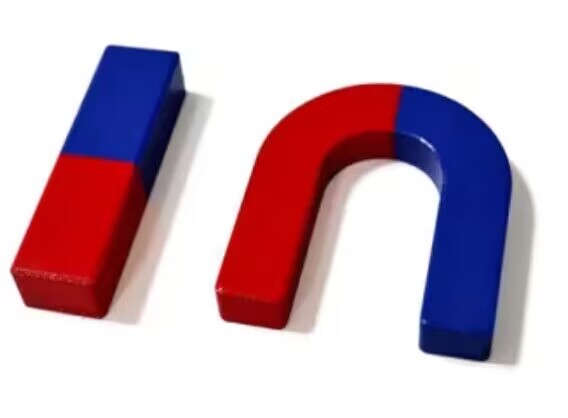

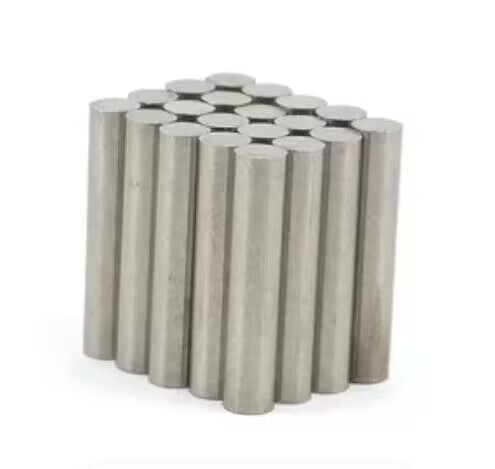

AlNiCo MAGNET
Magnetic Properties and Physical Properties of Alnico Mangnet
01
Magnetic properties and physical characteristics
USA
Stand
Grade Br HcB (BH)max Density Reversible Temp. Coefficient Reversible Temp. Coefficient Curie Temp. Temp. Coefficient Remark
MMPA mT Gs KA/m Oe KJ/m3 MGOe g/cm3 %/℃ %/℃ ℃ ℃
AlNiCo3 LN10 600 6000 40 500 10 1.2 6.9 -0.03 -0.02 810 450 Isotropy
AlNiCo2 LNG13 700 7000 48 600 12.8 1.6 7.2 -0.03 +0.02 810 450
AlNiCo8 LNGT18 580 5800 100 1250 18 2.2 7.3 -0.025 +0.02 860 550
AlNiCo5 LNG37 1200 12000 48 600 37 4.65 7.3 -0.02 +0.02 850 525 Anisotropy
LNG40 1250 12500 48 600 40 5 7.3 -0.02 +0.02 850 525
LNG44 1250 112500 52 650 44 5.5 7.3 -0.02 +0.02 850 525
AlNiCo5DG LNG52 1300 13000 56 700 52 6.5 7.3 -0.02 +0.02 850 525
AlNiCo5-7 LNG60 1350 13500 59 740 60 7.5 7.3 -0.02 +0.02 850 525
AlNiCo6 LNGT28 1000 10000 57.6 720 28 3.5 7.3 -0.02 +0.03 850 525
AlNiCo8HC LNGT36J 700 7000 140 1750 36 4.5 7.3 -0.025 +0.02 860 550
LNGT40J 750 7500 144 1800 40 5 7.3 -0.025 +0.02 860 550
AlNiCo8 LNGT38 800 8000 110 1380 38 4.75 7.3 -0.025 +0.02 860 550
LNGT40 820 8200 110 1380 40 5 7.3 -0.025 +0.02 860 550
LNGT44 850 8500 120 1500 44 5.5 7.3 -0.025 +0.02 860 550
AlNiCo9 LNGT60 900 9000 110 1380 60 7.5 7.3 -0.025 +0.02 860 550
LNGT72 1050 10500 112 1400 72 9 7.3 -0.025 +0.02 860 550
LNGT80 1080 10800 120 1500 80 10 7.3 -0.025 +0.02 860 550
LNGT88 1100 11000 120 1500 88 11 7.3 -0.025 +0.02 860 550
LNGT92 1120 11200 120 1500 92 11.5 7.3 -0.025 +0.02 860 550
LNGT96 1150 11500 120 1500 96 12 7.3 -0.025 +0.02 860 550
