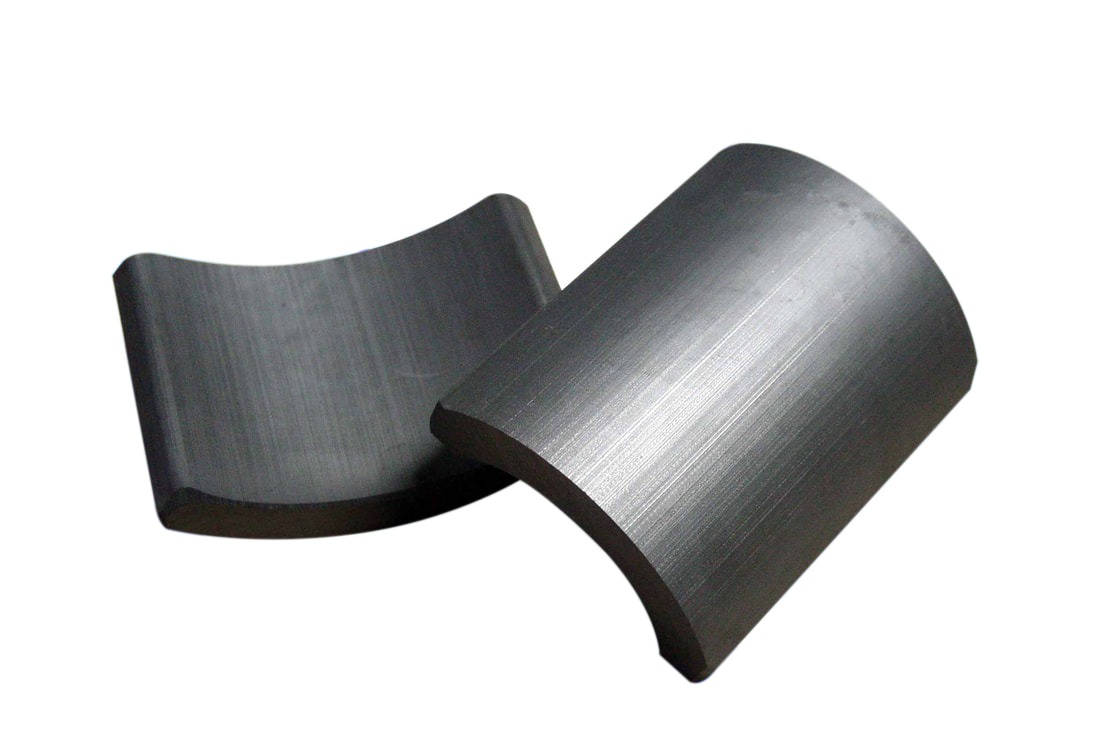

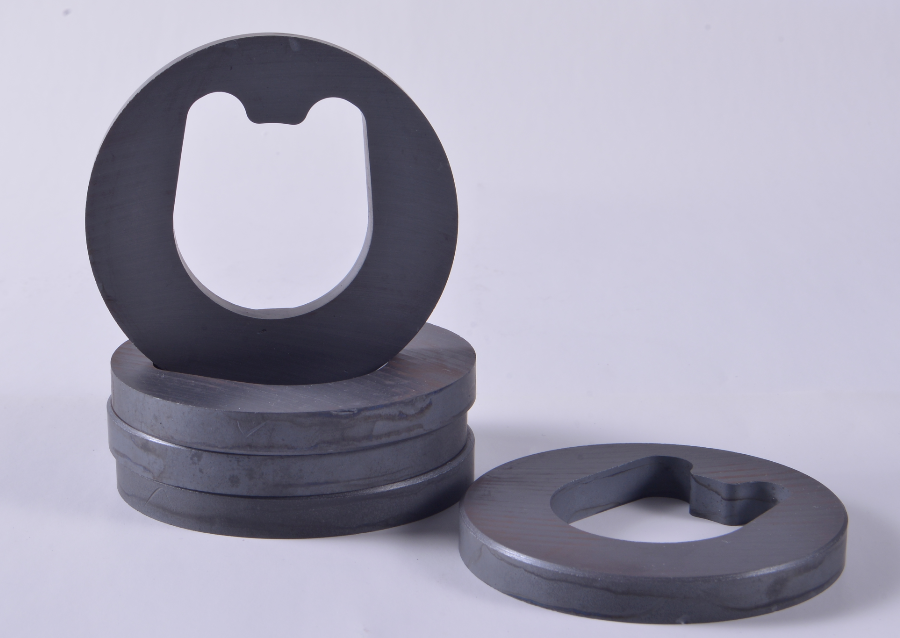

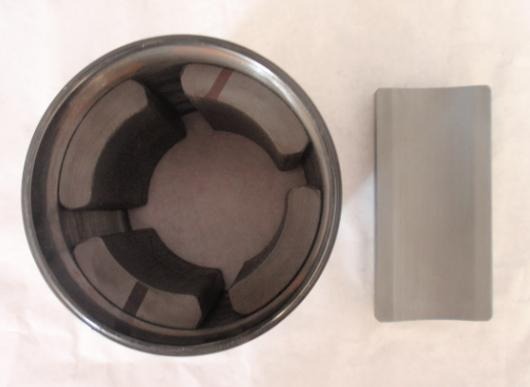

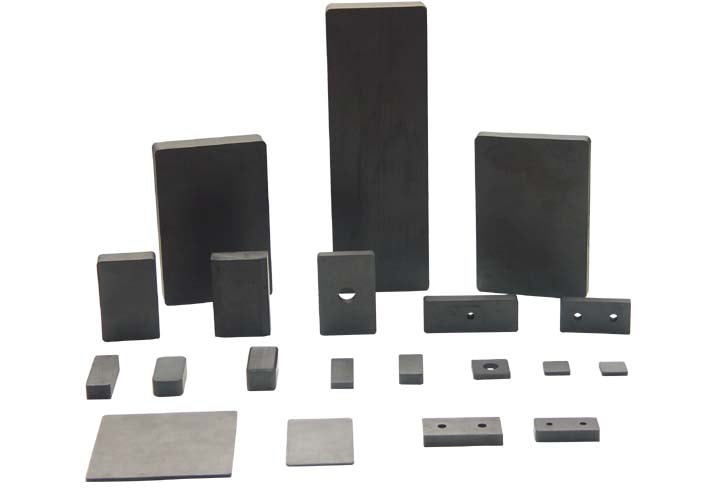

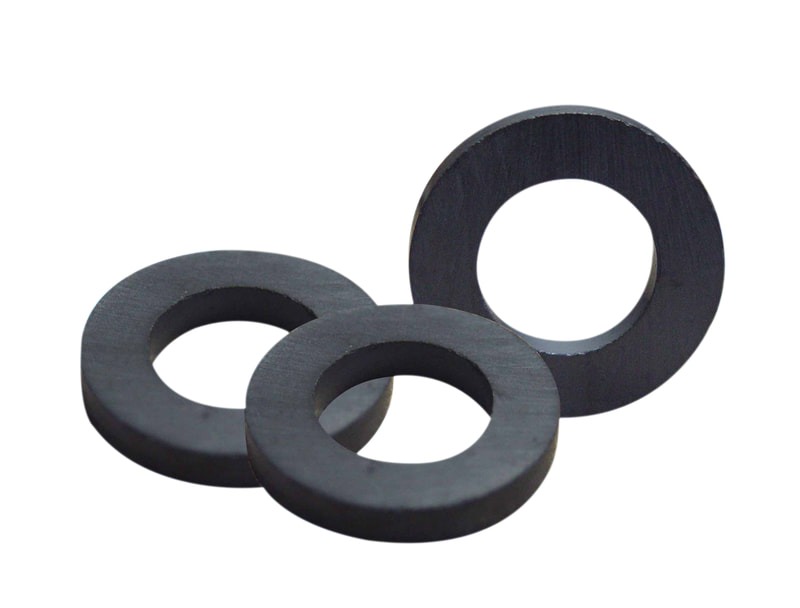

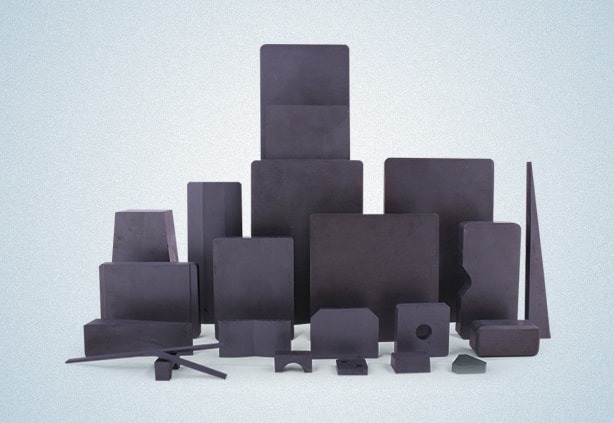

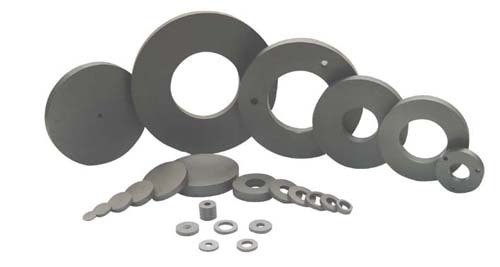

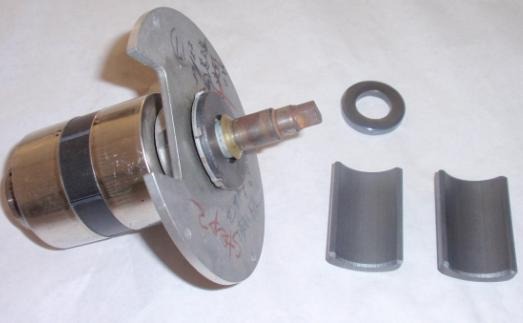

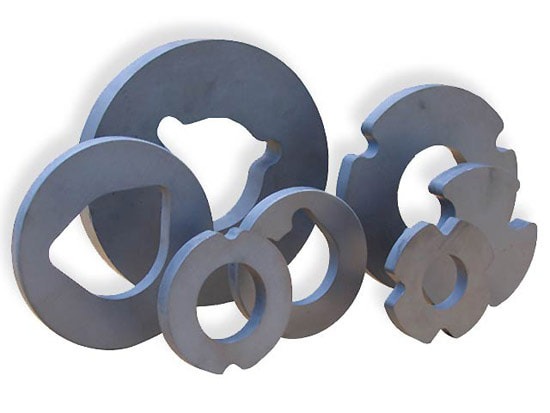

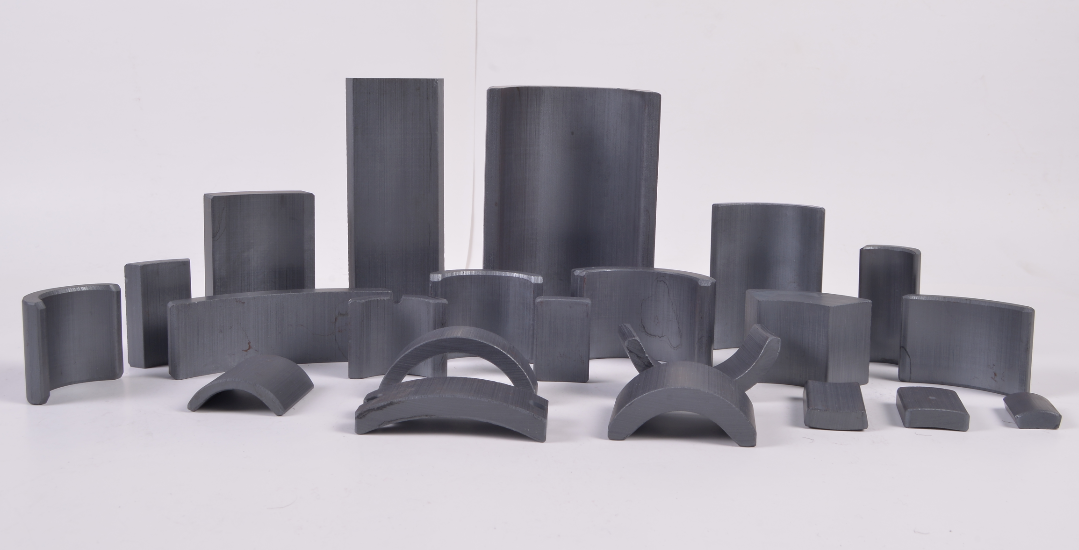

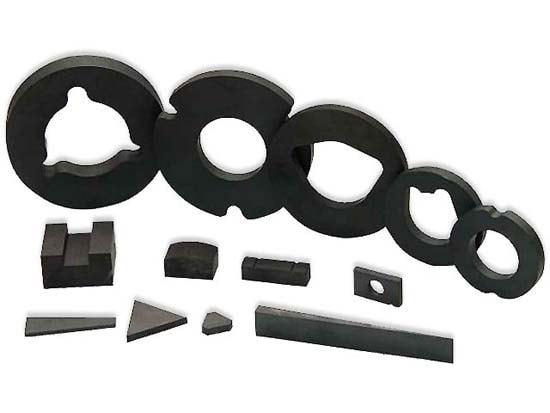

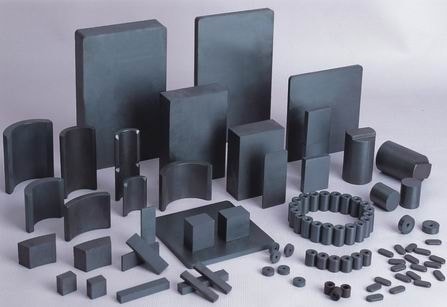

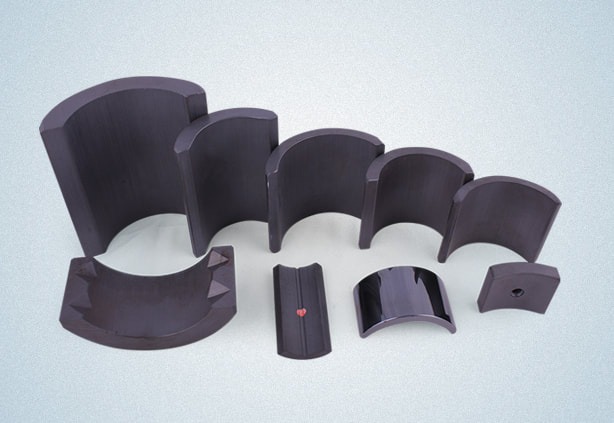

Iron oxide is produced using powder metallurgy and can be divided into two types: anisotropic and isotropic. Isotropic sintered iron oxide permanent magnets can be magnetized in different directions, offering greater freedom, but their magnetic properties are weaker. Anisotropic sintered iron oxide permanent magnets, on the other hand, are produced with a fixed axial or radial orientation. Once oriented, the magnet can only be magnetized in the predetermined direction and cannot be changed. However, they possess relatively stronger magnetic properties and higher magnet retention, making them the mainstream in the current iron oxide magnet market. Because the main raw material is oxide, it is not easily corroded and has high-temperature resistance, allowing operation from -40℃ to +200℃. Therefore, iron oxide permanent magnets are widely used in automobiles (such as starter motors, windshield wipers, automatic seats, automatic sunroofs, oil pumps, fans, power steering motors, etc.), motorcycles, home appliances (air conditioners, washing machines, juicers, fans, water purifiers, etc.), power tools, fitness equipment, and other fields.
| SJ/T10410-2002 Grade |
Br | HcB | Hcj | (BH)max | ||||
|---|---|---|---|---|---|---|---|---|
| kGs | mT | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | |
| Y8T | 2.00-2.35 | 200-235 | 1.57-2.01 | 125-160 | 2.64-3.52 | 210-280 | 0.81-1.19 | 6.5-9.5 |
| Y22H | 3.10-3.60 | 310-360 | 2.77-3.14 | 220-250 | 3.52-4.02 | 280-320 | 2.51-3.52 | 20.0-24.0 |
| Y25 | 3.60-4.00 | 360-400 | 1.70-2.14 | 135-170 | 1.76-2.51 | 140-200 | 2.83-3.52 | 22.5-28.0 |
| Y26H-1 | 3.60-3.90 | 360-390 | 2.51-3.14 | 200-250 | 2.83-3.21 | 225-255 | 2.90-3.52 | 23.0-28.0 |
| Y26H-2 | 3.60-3.80 | 360-380 | 3.30-3.62 | 263-288 | 3.99-4.40 | 318-350 | 3.01-3.52 | 24.0-28.0 |
| Y27H | 3.50-3.80 | 350-380 | 2.83-3.01 | 225-240 | 2.95-3.26 | 235-260 | 3.14-3.64 | 25.0-29.0 |
| Y28 | 3.70-4.00 | 370-400 | 2.20-2.64 | 175-210 | 2.26-2.77 | 180-220 | 3.30-3.77 | 26.0-30.0 |
| Y28H-1 | 3.80-4.00 | 380-400 | 3.01-3.27 | 240-260 | 3.14-3.52 | 250-280 | 3.40-3.77 | 27.0-30.0 |
| Y28H-2 | 3.60-3.80 | 360-380 | 3.40-3.71 | 271-295 | 4.79-5.08 | 382-405 | 3.27-3.77 | 26.0-30.0 |
| Y30 | 3.70-4.00 | 370-400 | 2.20-2.64 | 175-210 | 2.26-2.77 | 180-220 | 3.30-3.77 | 26.0-30.0 |
| Y30H-1 | 3.80-4.00 | 380-400 | 2.89-3.46 | 230-275 | 2.95-3.65 | 235-290 | 3.27-4.14 | 26.0-32.5 |
| Y30H-2 | 3.95-4.15 | 395-415 | 3.46-3.77 | 275-300 | 3.89-4.21 | 310-335 | 3.39-4.02 | 27.0-32.0 |
| Y32 | 4.00-4.20 | 400-420 | 2.01-2.38 | 160-190 | 2.07-2.45 | 165-195 | 3.76-4.20 | 30.0-33.5 |
| Y32H-1 | 4.00-4.20 | 400-420 | 2.38-2.89 | 190-230 | 2.88-3.14 | 230-250 | 3.95-4.39 | 31.5-35.0 |
| Y32H-2 | 4.00-4.40 | 400-440 | 2.81-3.01 | 224-240 | 2.88-3.14 | 230-250 | 3.95-4.33 | 31.0-34.0 |
| Y33 | 4.10-4.30 | 410-430 | 2.76-3.14 | 220-250 | 2.82-3.20 | 225-255 | 3.96-4.40 | 31.5-35.0 |
| Y33H | 4.10-4.30 | 410-430 | 3.14-3.39 | 250-270 | 3.14-3.45 | 250-275 | 3.96-4.40 | 31.5-35.0 |
| Y34 | 4.20-4.40 | 420-440 | 2.51-2.88 | 200-230 | 2.57-2.95 | 205-235 | 4.08-4.52 | 32.5-36.0 |
| Y35 | 4.30-4.50 | 430-450 | 2.70-3.00 | 215-239 | 2.72-3.03 | 217-241 | 4.16-4.80 | 33.1-38.2 |
| Y38 | 4.40-4.60 | 440-460 | 3.40-3.80 | 271-303 | 3.60-4.20 | 287-334 | 4.40-5.00 | 35.0-39.8 |
| Y40 | 4.30-4.50 | 430-450 | 3.80-4.20 | 303-334 | 4.30-4.70 | 342-374 | 4.30-4.80 | 34.2-38.2 |
| Note: The above performance is for reference only. Various performance levels can be customized according to the motor design requirements. | ||||||||
| Grade | Br | HcB | Hcj | (BH)max | ||||
|---|---|---|---|---|---|---|---|---|
| kGs | mT | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | |
| FB3N | 3.90-4.10 | 390-410 | 2.70-3.20 | 215-255 | 2.90-3.40 | 231-271 | 3.70-4.30 | 29.4-33.4 |
| FB4D | 4.00-4.20 | 400-420 | 2.70-3.20 | 215-255 | 2.80-3.30 | 223-263 | 3.80-4.30 | 30.2-34.2 |
| FB4B | 3.90-4.10 | 390-410 | 3.00-3.40 | 239-271 | 3.20-3.60 | 255-287 | 3.50-4.10 | 27.9-32.6 |
| FB6E | 3.70-3.90 | 370-390 | 3.10-3.50 | 247-279 | 4.80-5.20 | 382-414 | 3.10-3.70 | 24.7-29.4 |
| FB4X | 4.10-4.30 | 410-430 | 2.90-3.30 | 231-263 | 3.00-3.40 | 239-271 | 4.00-4.40 | 31.5-34.7 |
| FB5B | 4.00-4.20 | 400-420 | 3.10-3.50 | 247-279 | 3.40-3.80 | 271-303 | 3.80-4.30 | 30.2-34.2 |
| FB5H | 3.90-4.10 | 390-410 | 3.30-3.70 | 263-295 | 3.90-4.30 | 310-342 | 3.70-4.20 | 29.4-33.4 |
| FB6N | 4.20-4.40 | 420-440 | 3.20-3.60 | 255-287 | 3.40-3.80 | 271-303 | 4.10-4.50 | 32.6-35.8 |
| FB6B | 4.10-4.30 | 410-430 | 3.50-3.90 | 279-311 | 3.90-4.30 | 310-342 | 4.00-4.40 | 31.5-34.7 |
| FB6H | 3.90-4.10 | 390-410 | 3.30-3.70 | 263-295 | 4.40-4.80 | 350-382 | 3.80-4.30 | 30.2-34.2 |
| FB9H | 4.20-4.40 | 420-440 | 3.70-4.10 | 295-326 | 4.80-5.20 | 382-414 | 4.20-4.70 | 33.4-37.4 |
| FB5N | 4.30-4.50 | 430-450 | 2.90-3.30 | 231-263 | 3.00-3.40 | 239-271 | 4.20-4.50 | 33.4-35.8 |
| FB9N | 4.40-4.60 | 440-460 | 3.40-3.80 | 271-303 | 3.60-4.20 | 287-334 | 4.40-5.00 | 35.0-39.8 |
| FB9B | 4.30-4.50 | 430-450 | 3.80-4.20 | 303-334 | 4.30-4.70 | 342-374 | 4.30-4.80 | 34.2-38.2 |
| Note: The above performance is for reference only. Various performance levels can be customized according to the motor design requirements. | ||||||||
