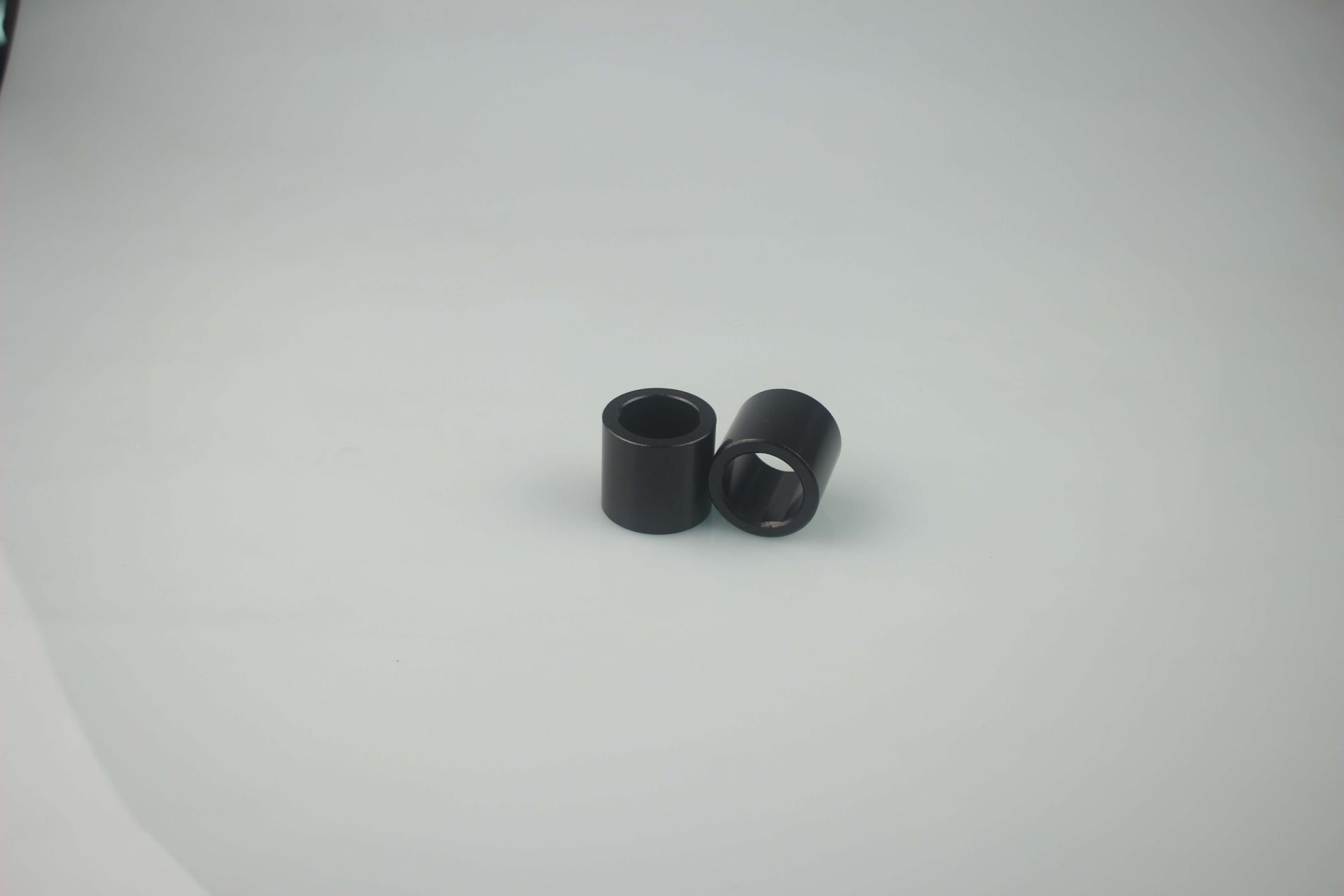

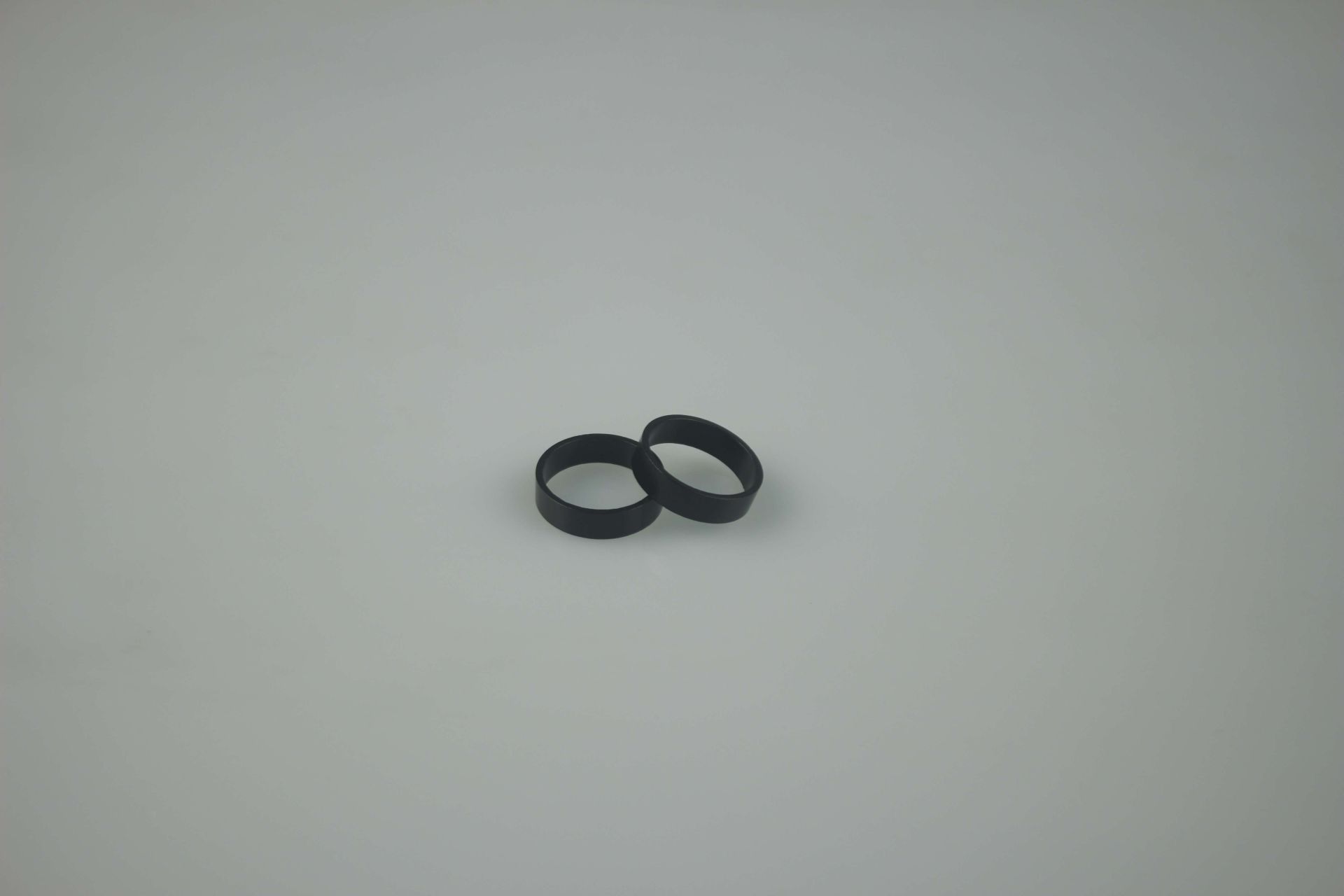

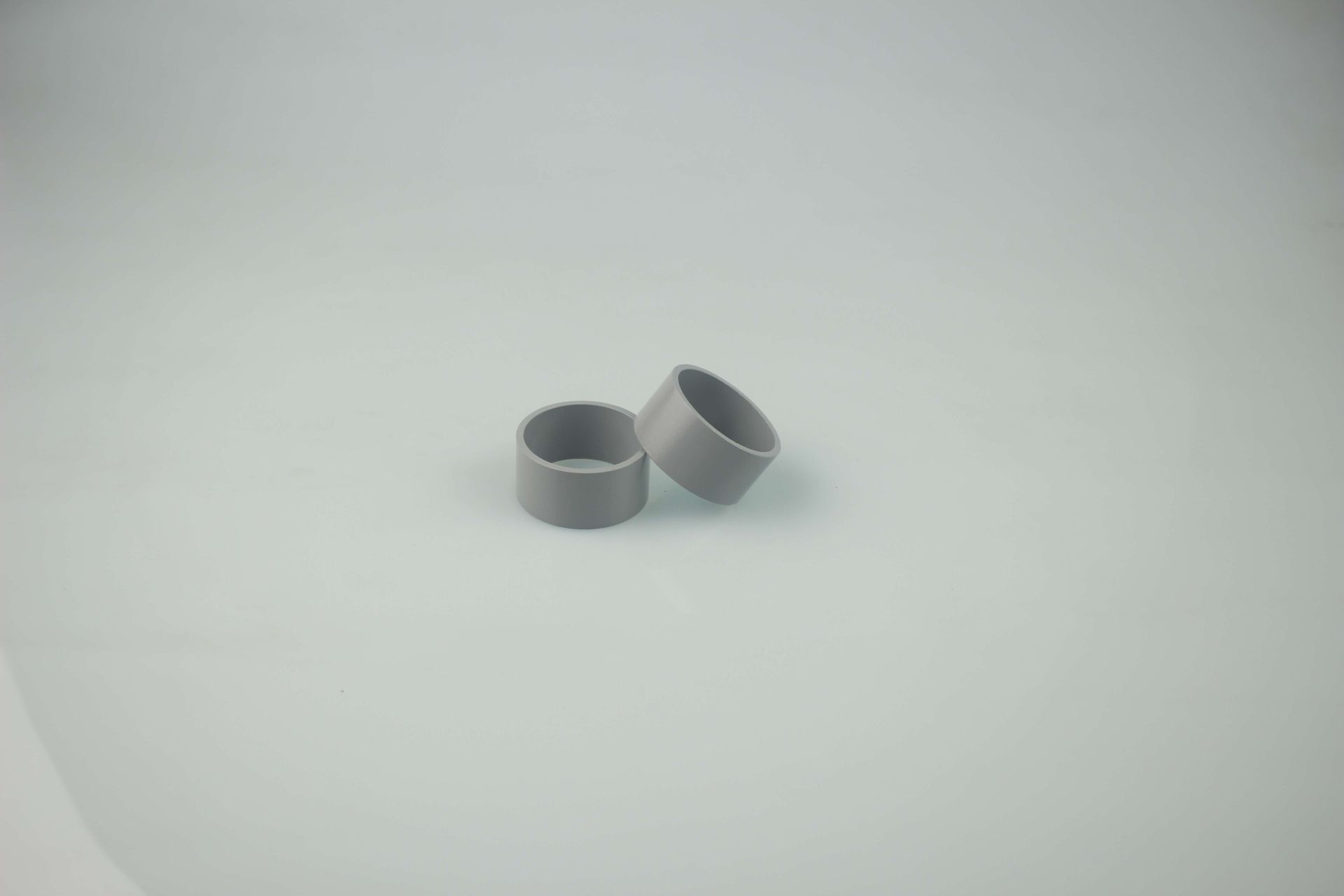

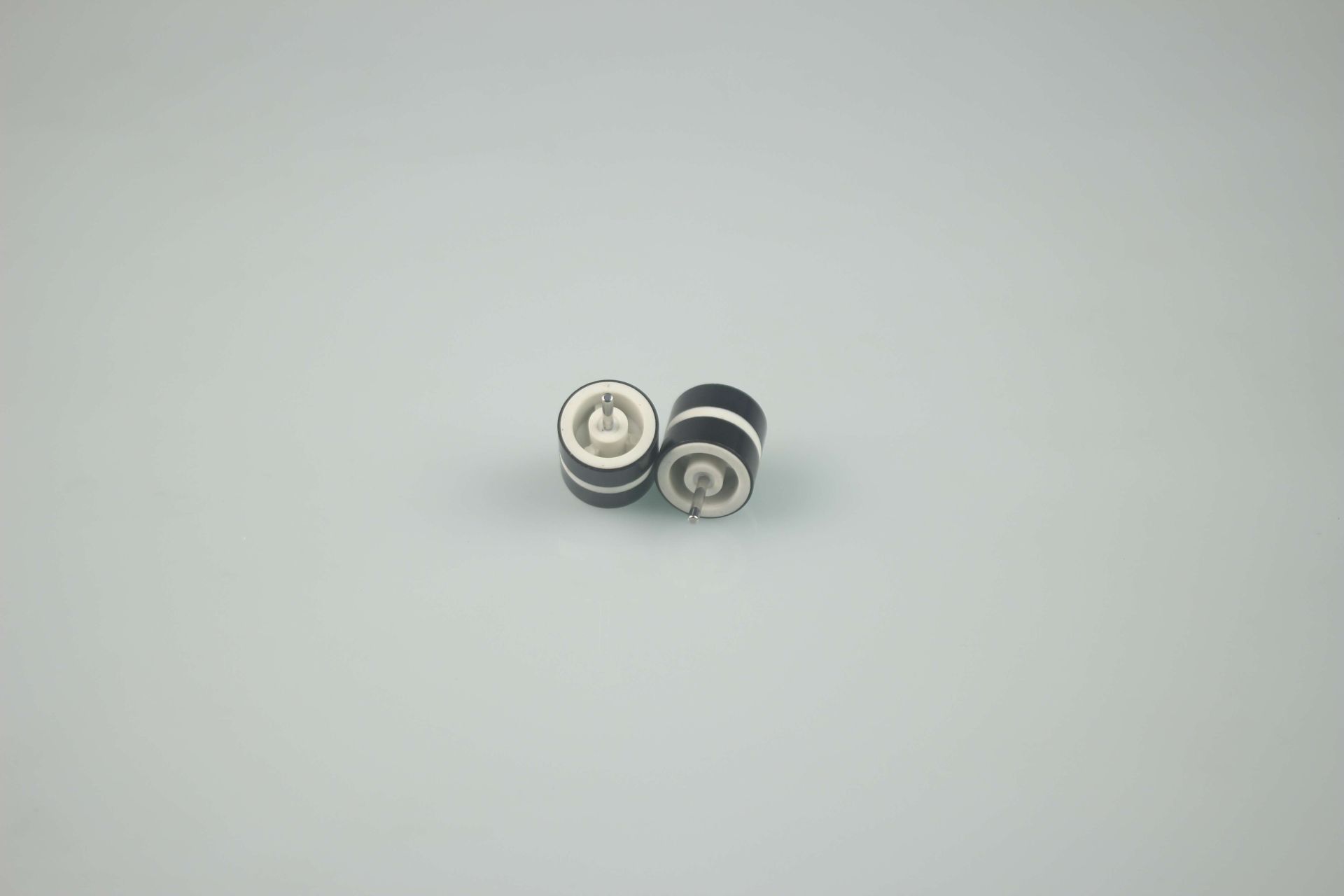

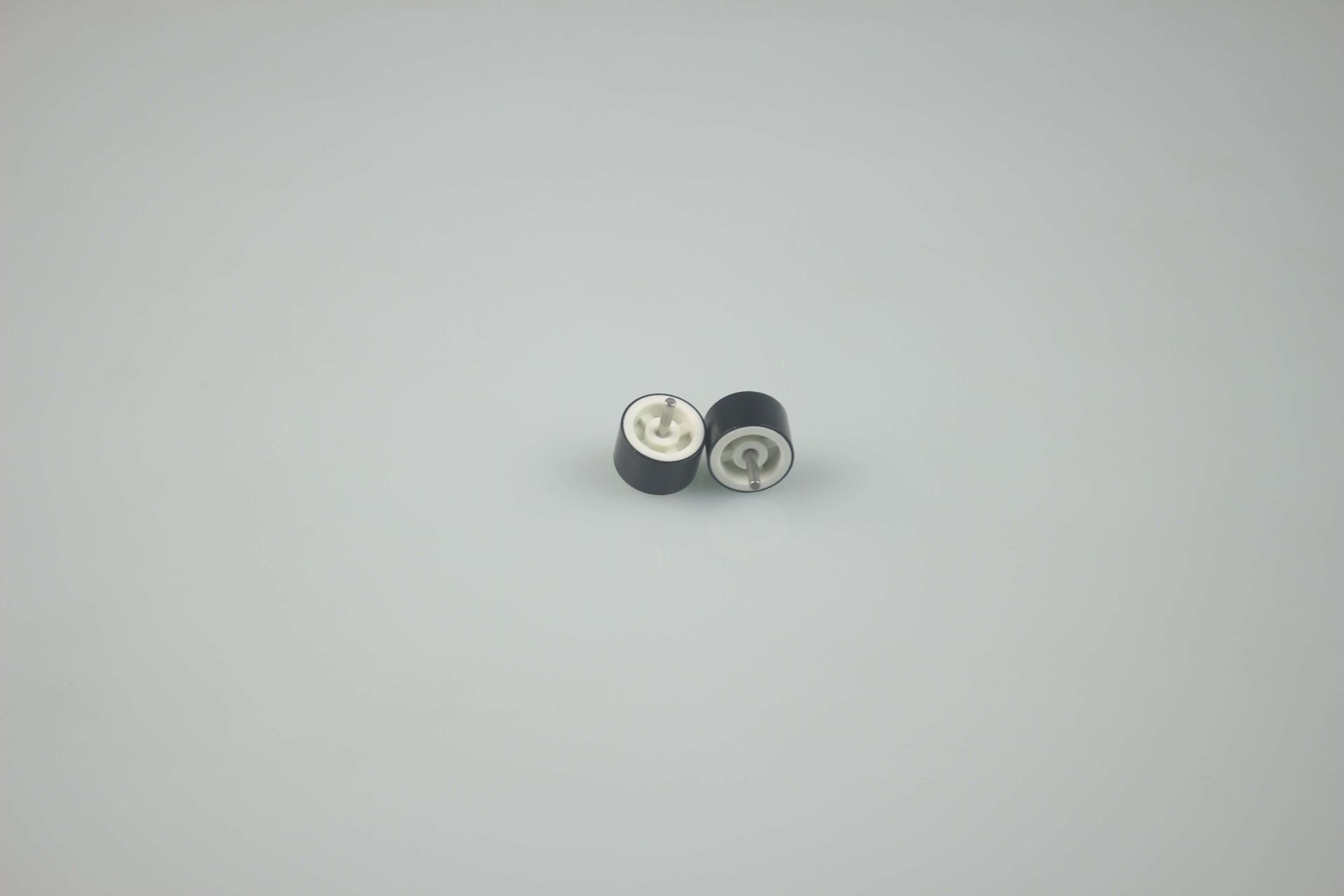

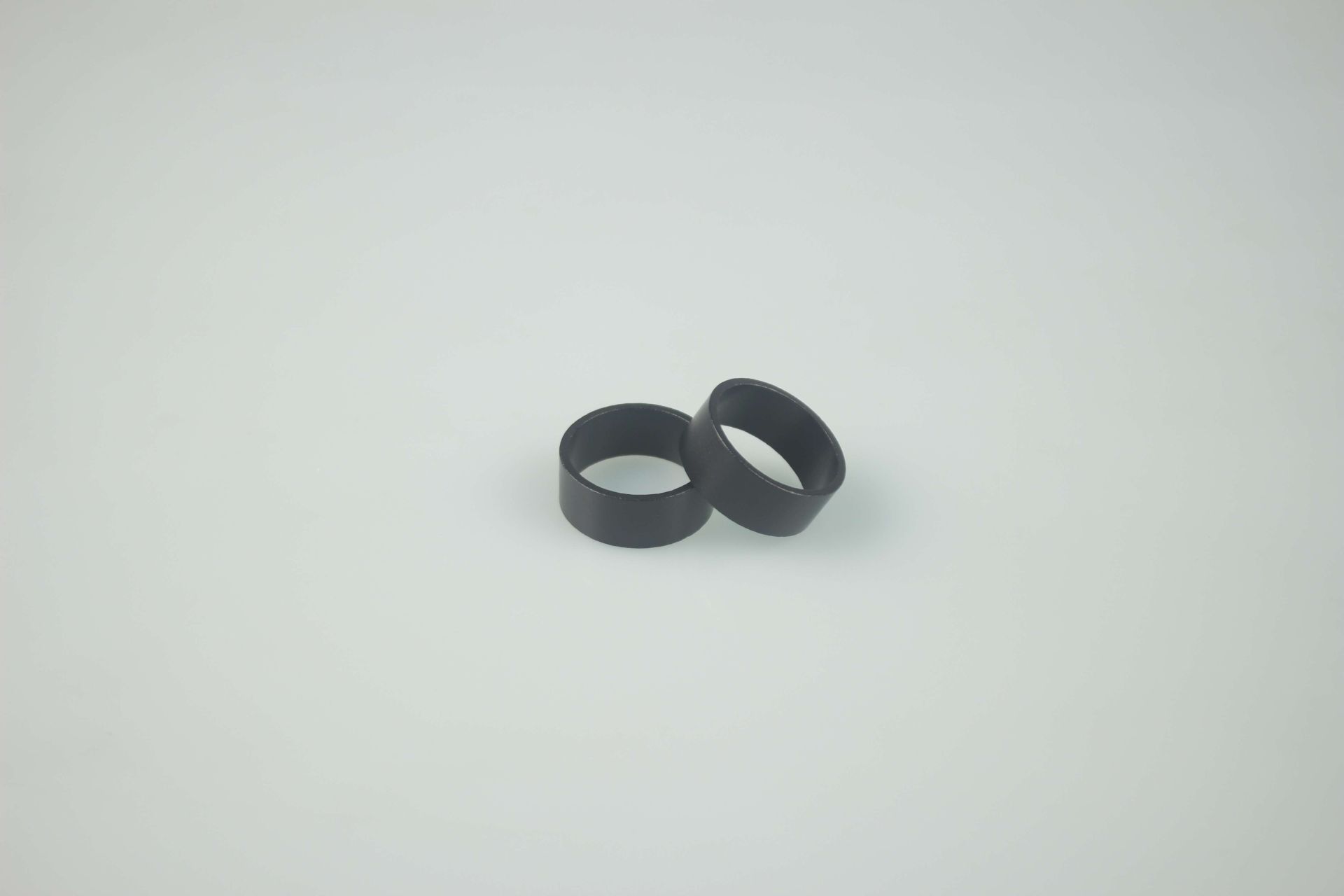

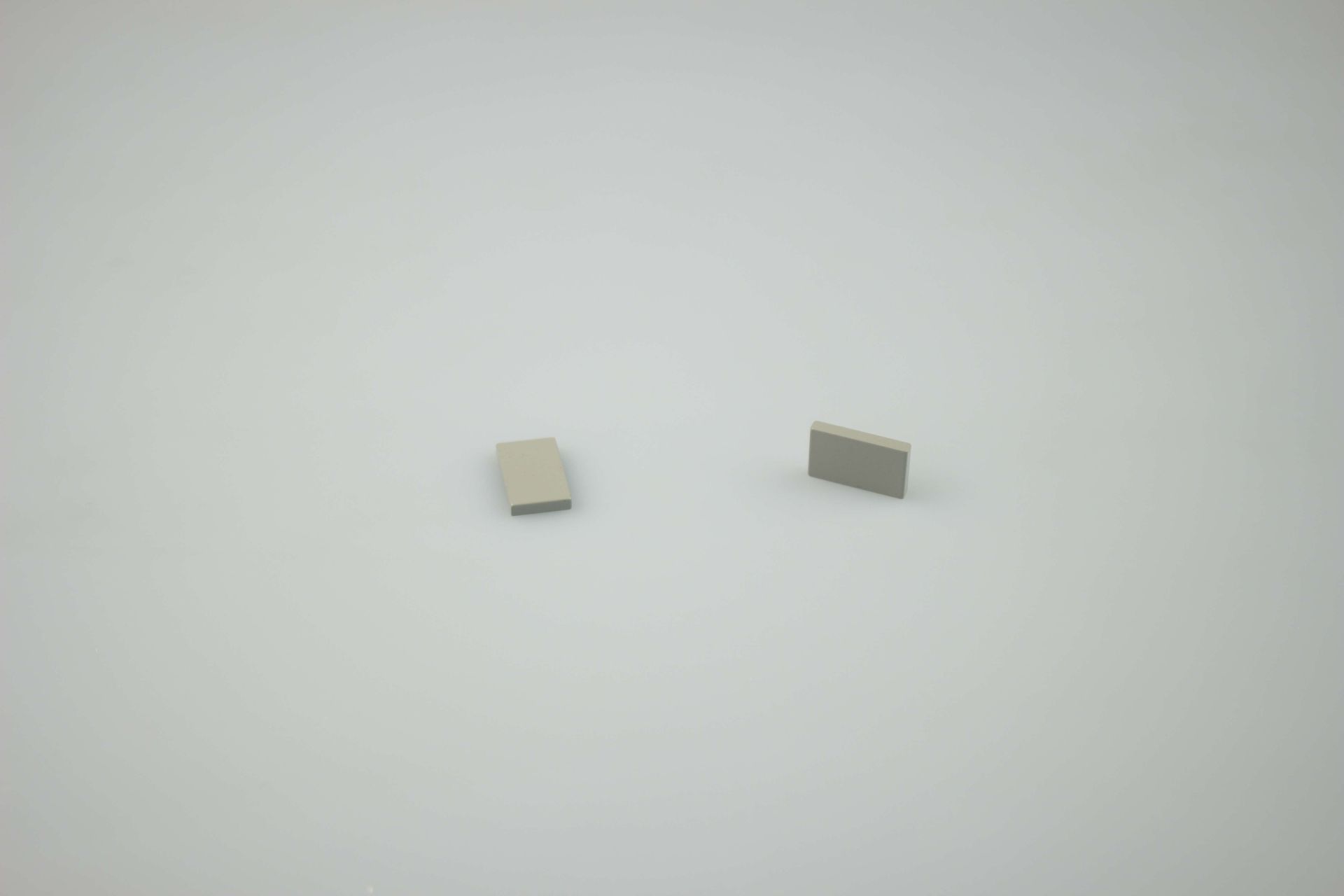

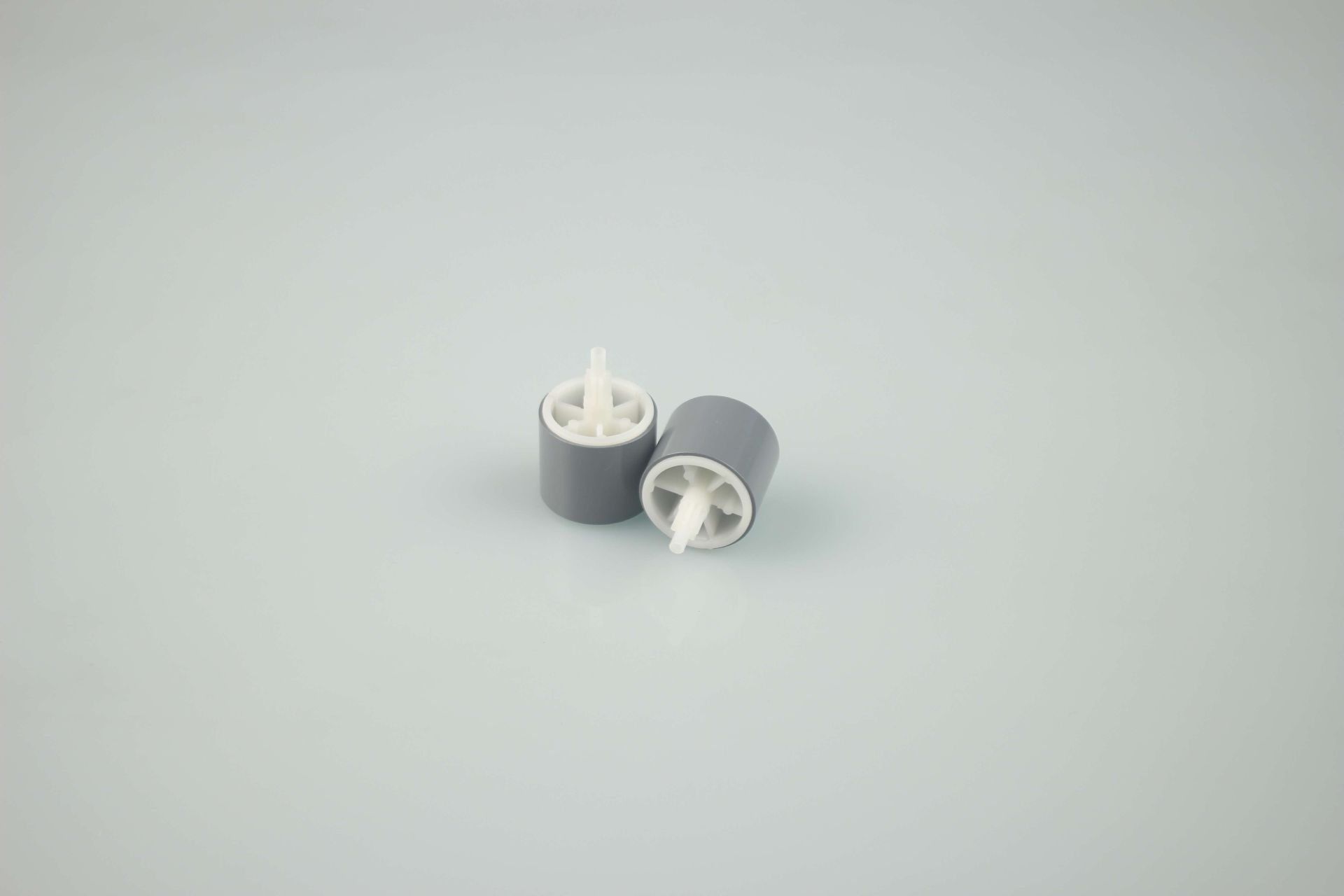

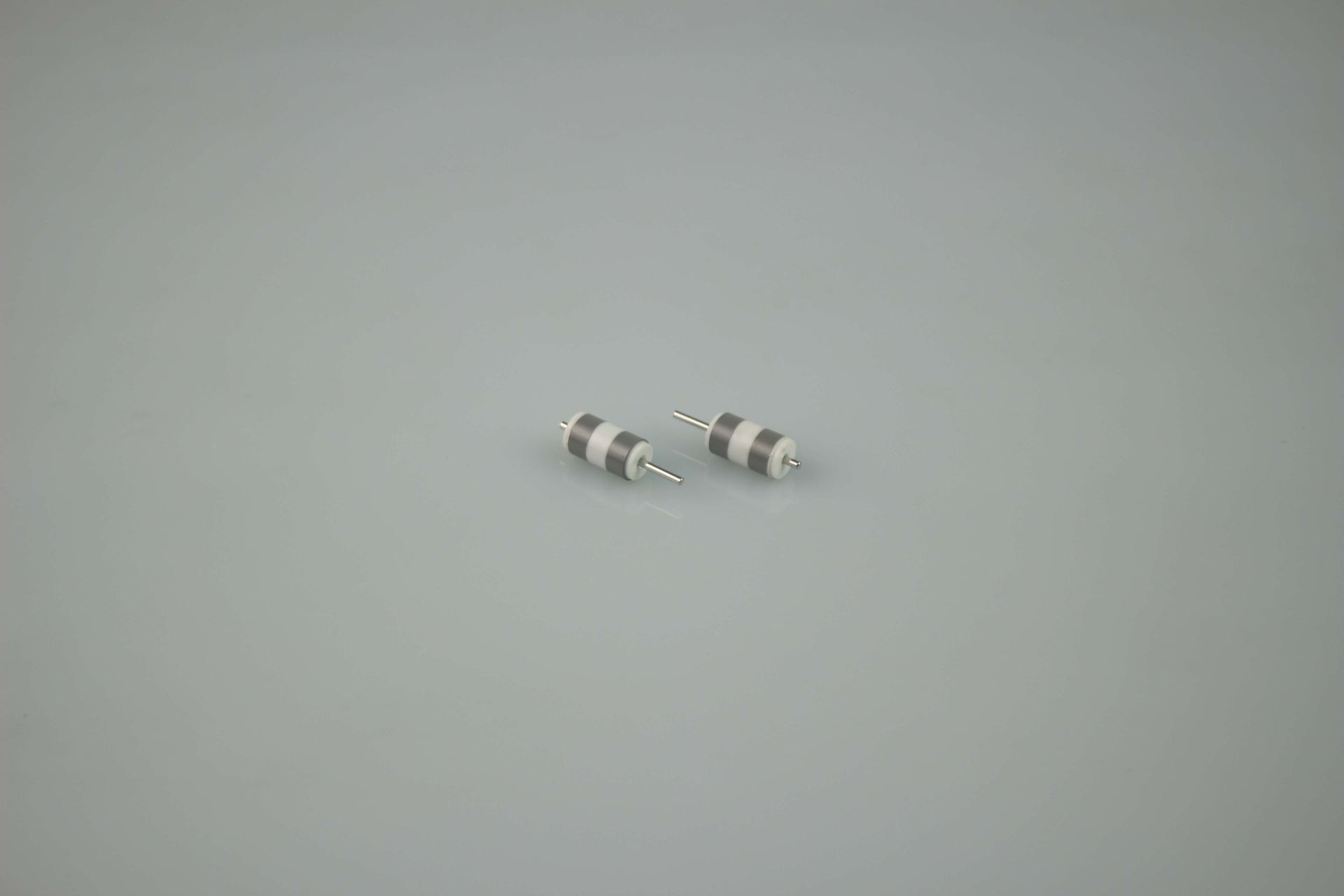

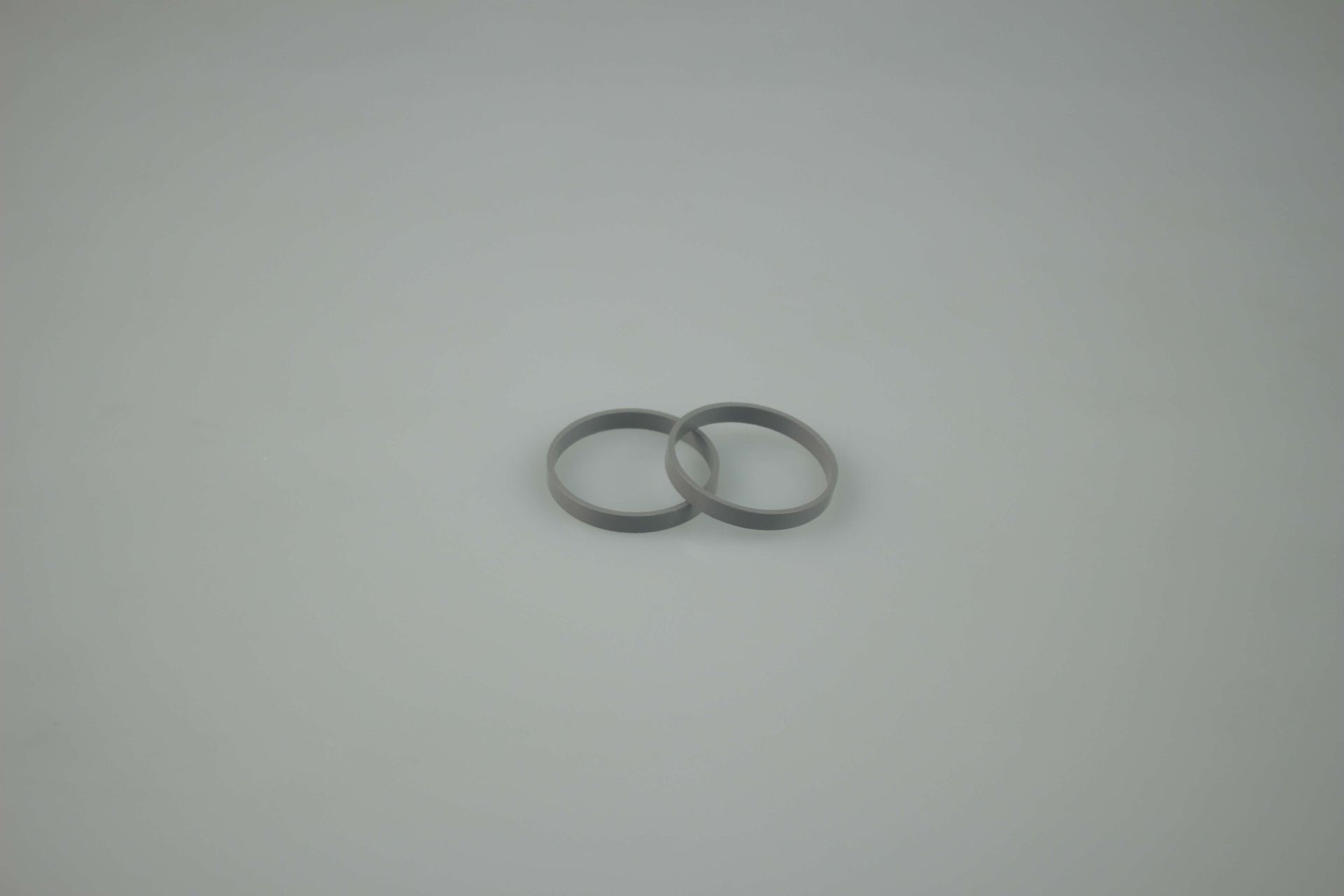

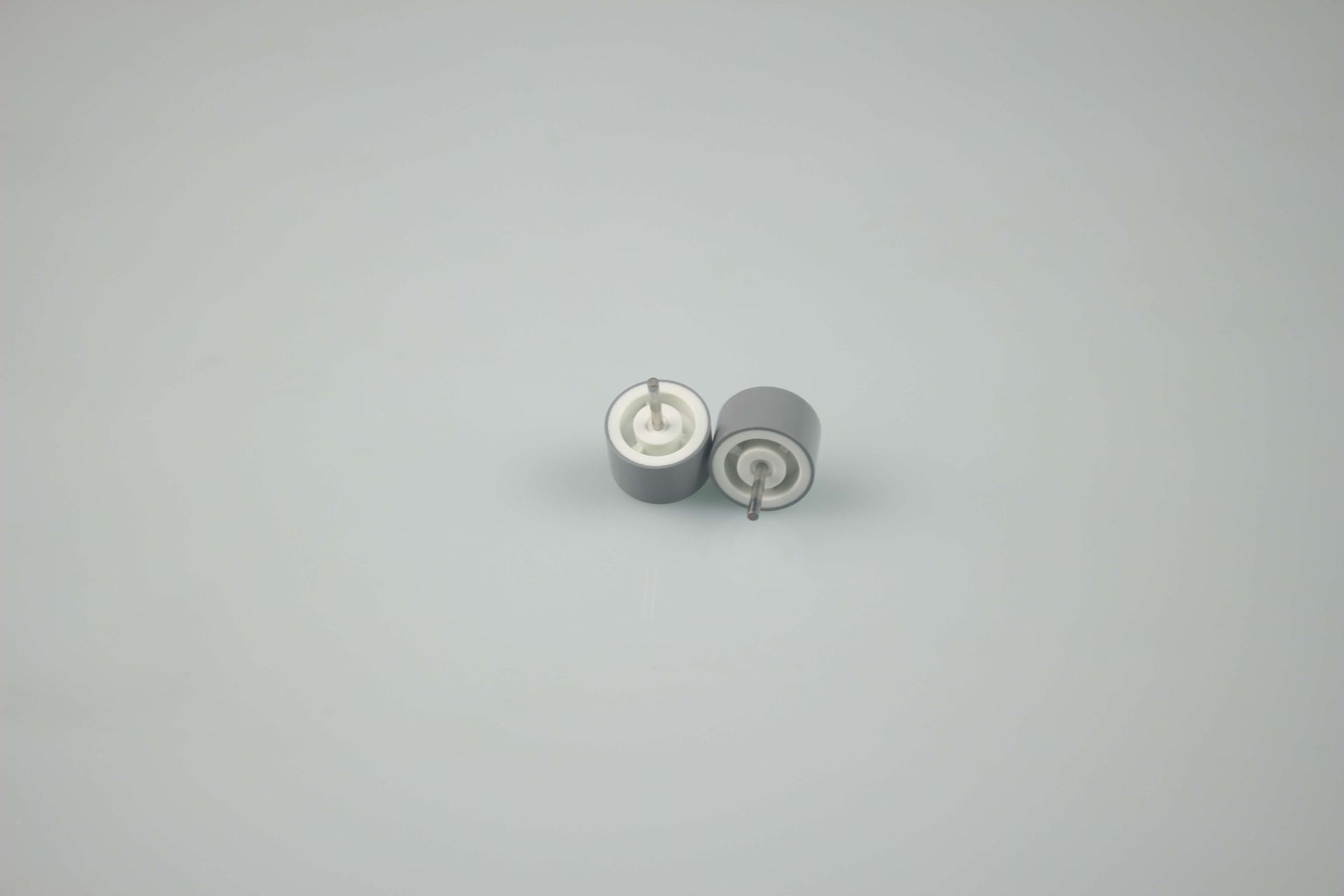

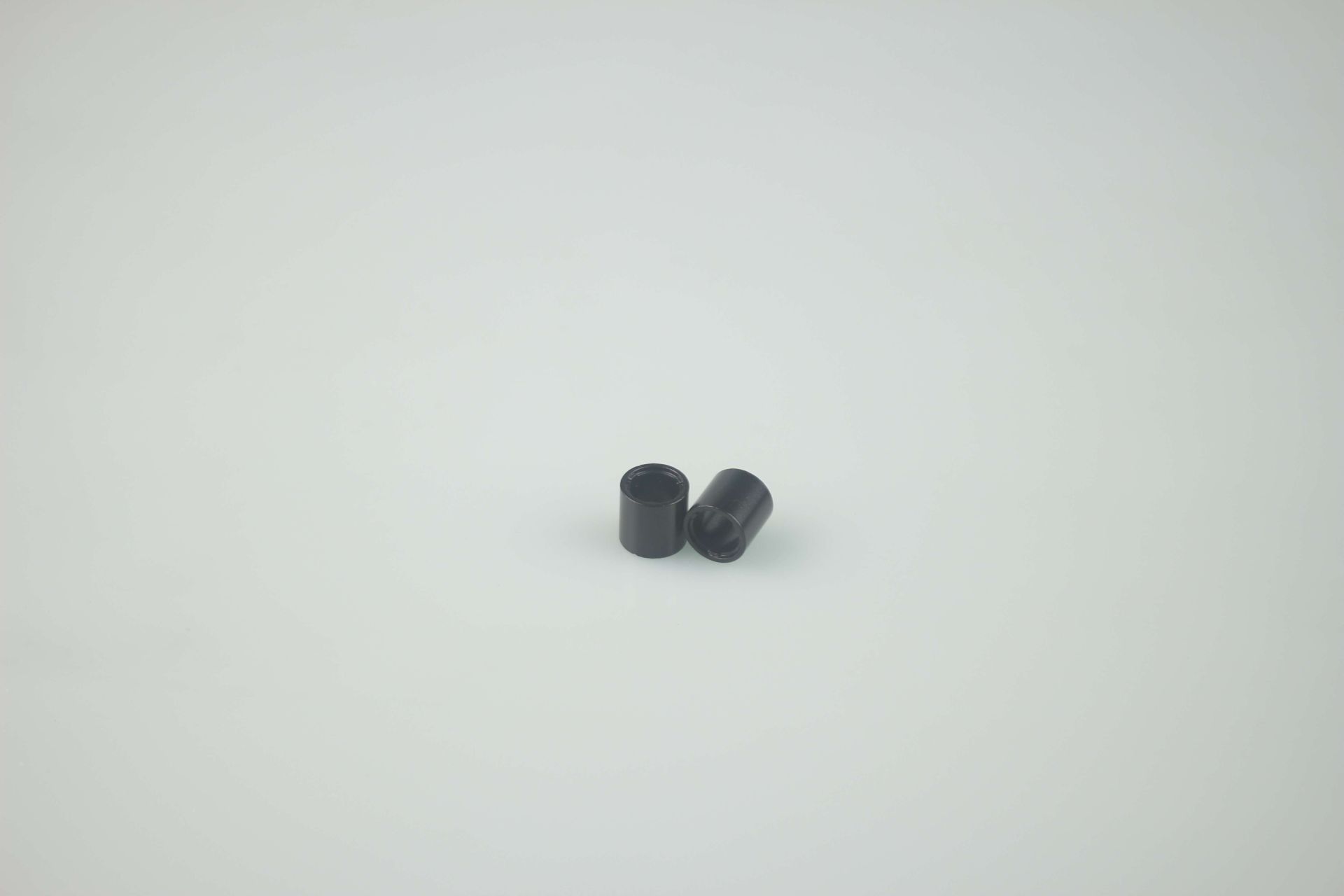

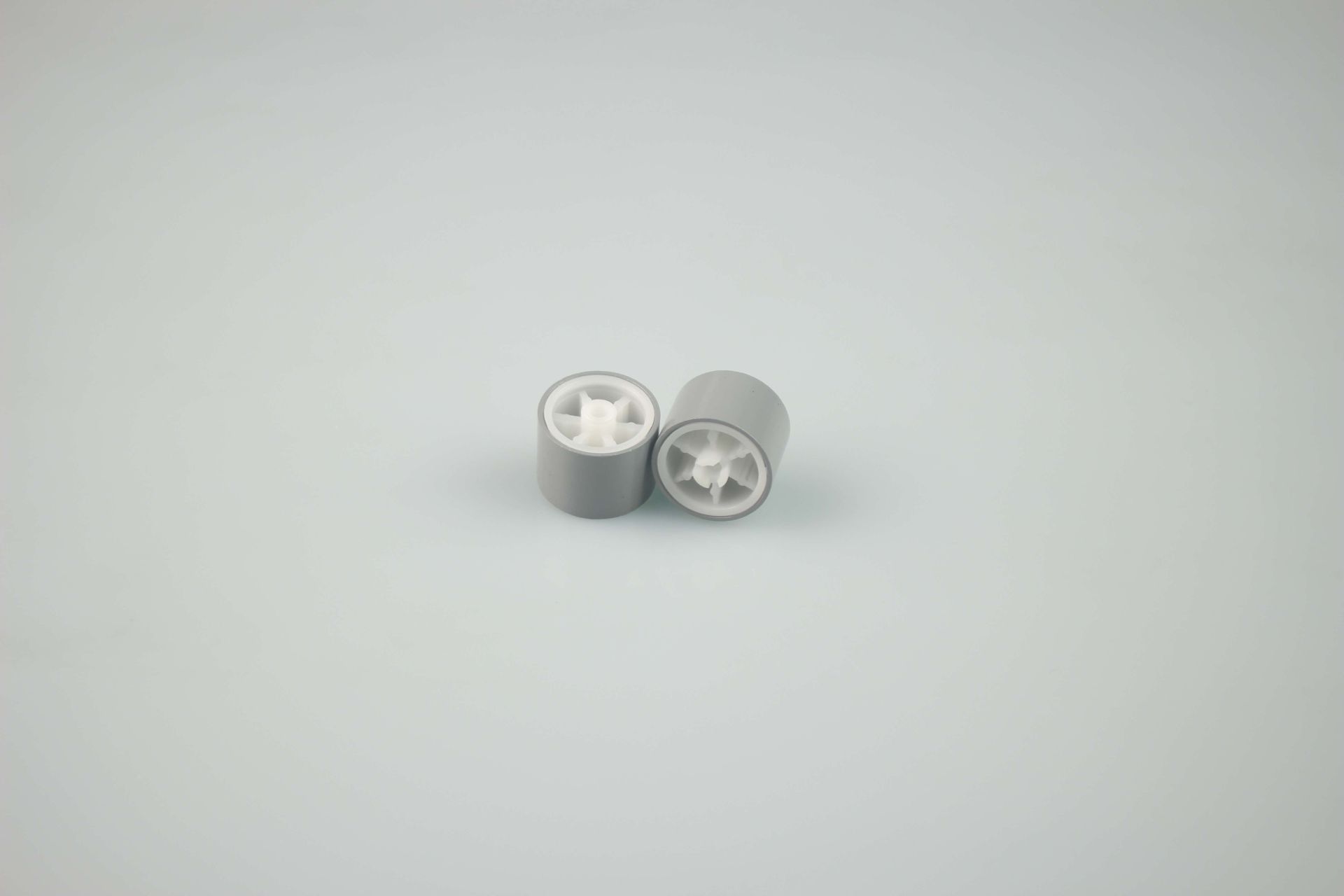

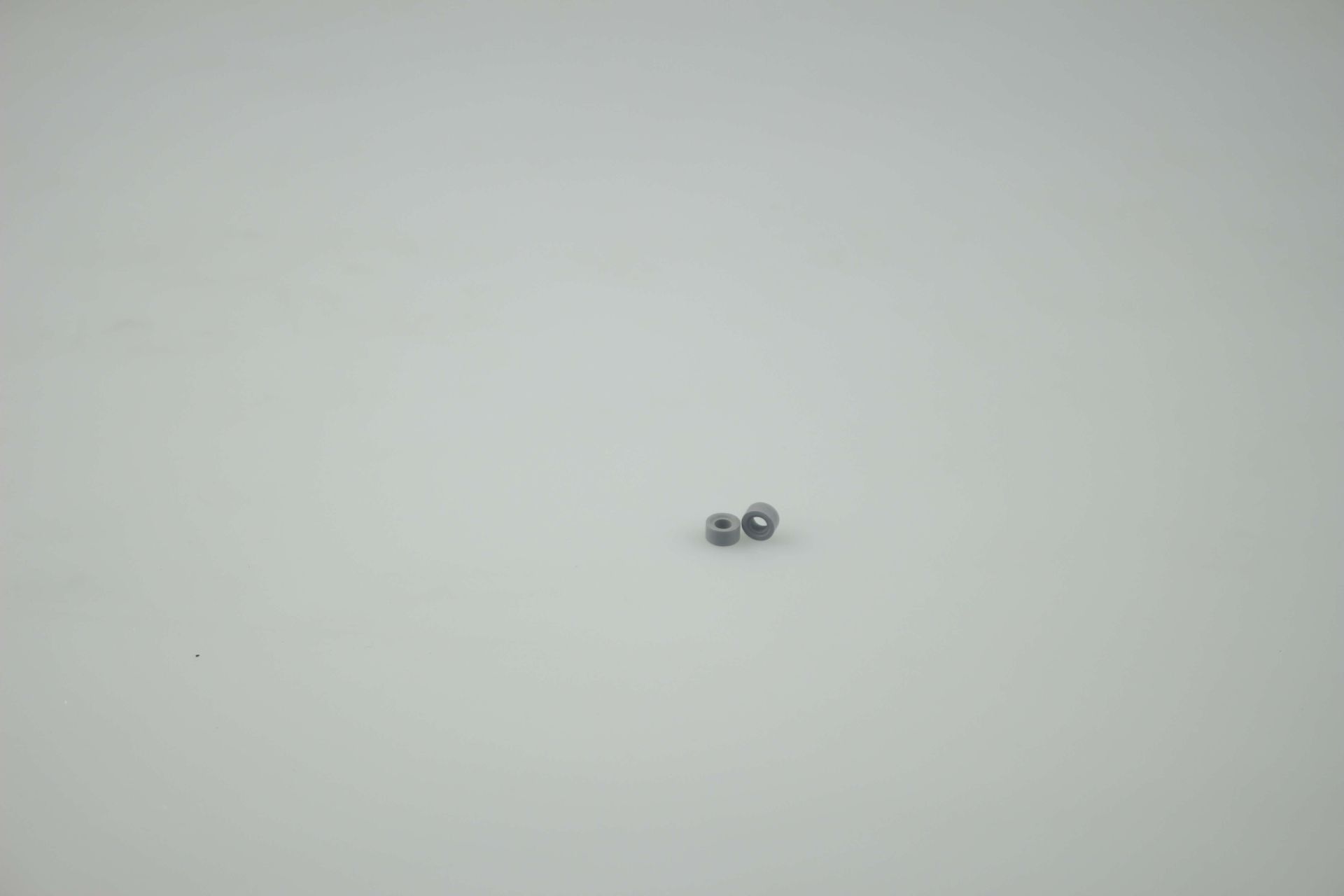

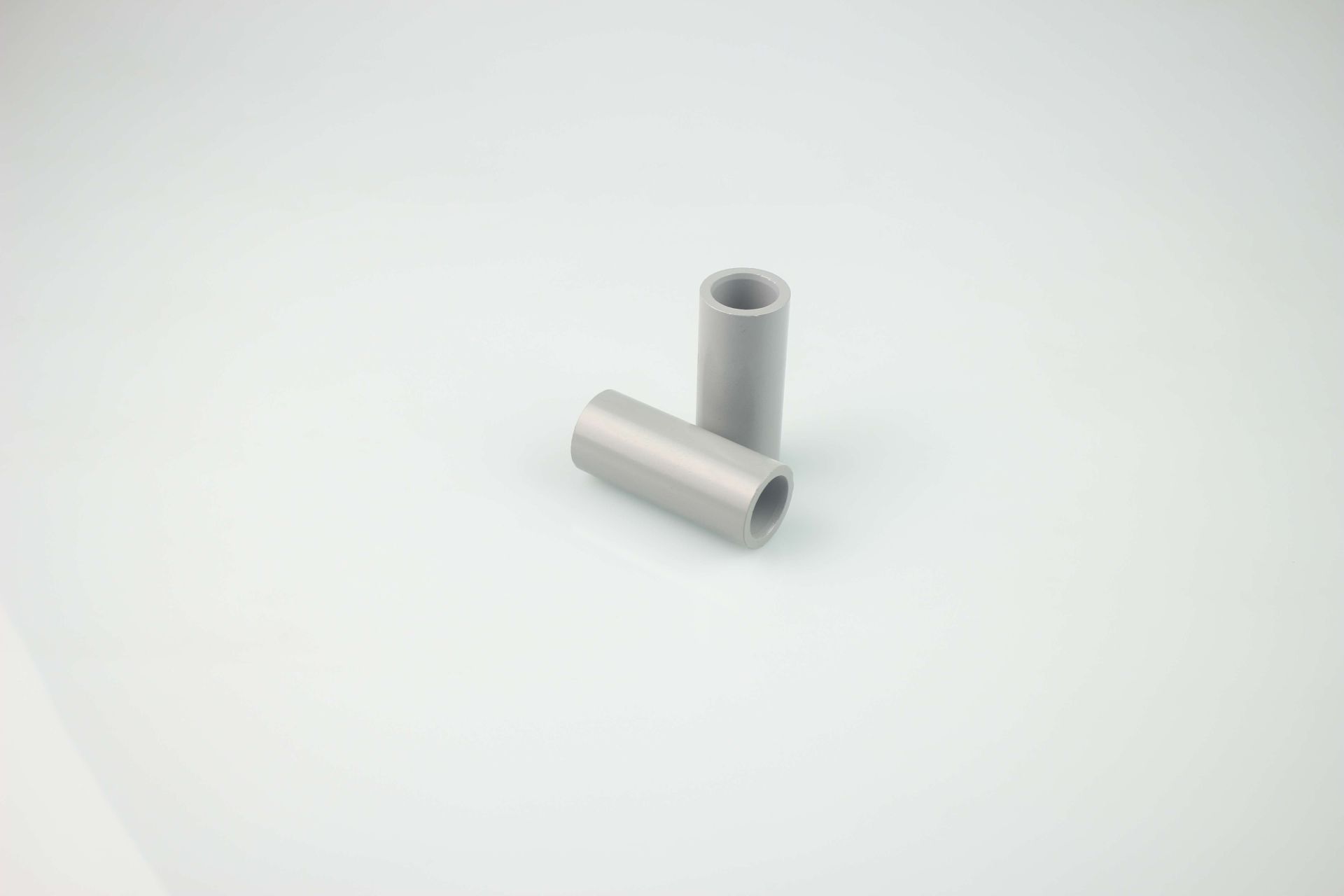

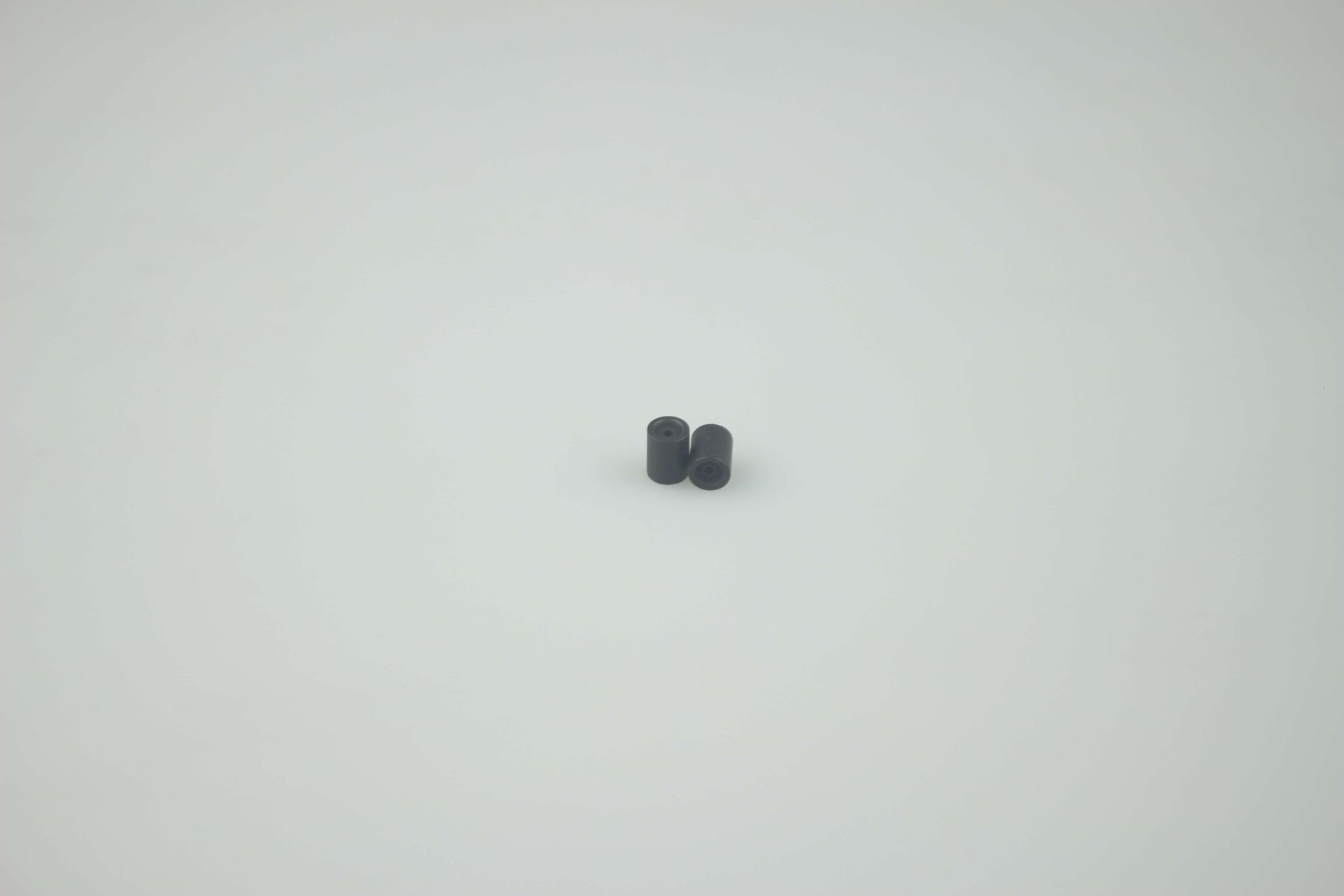

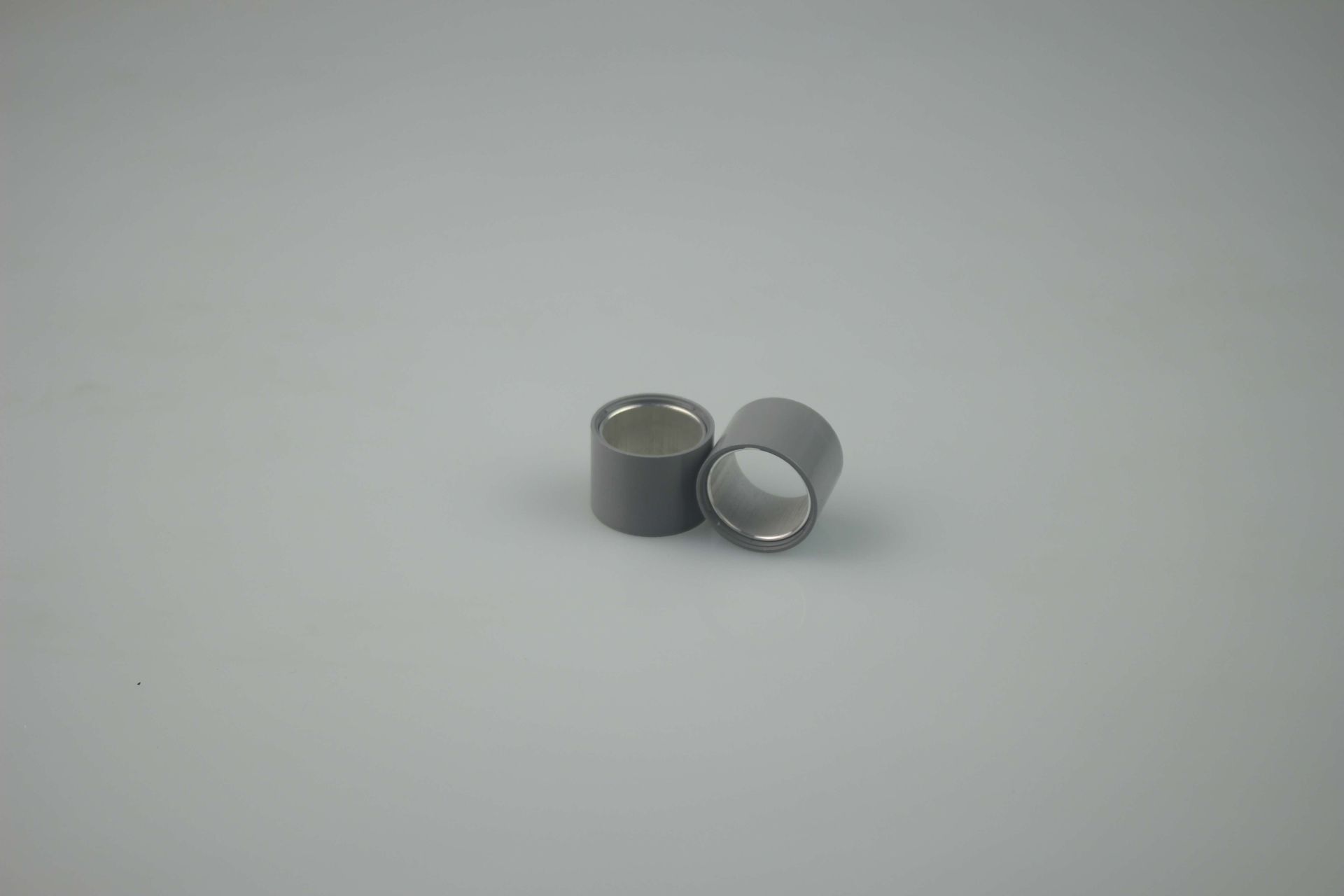

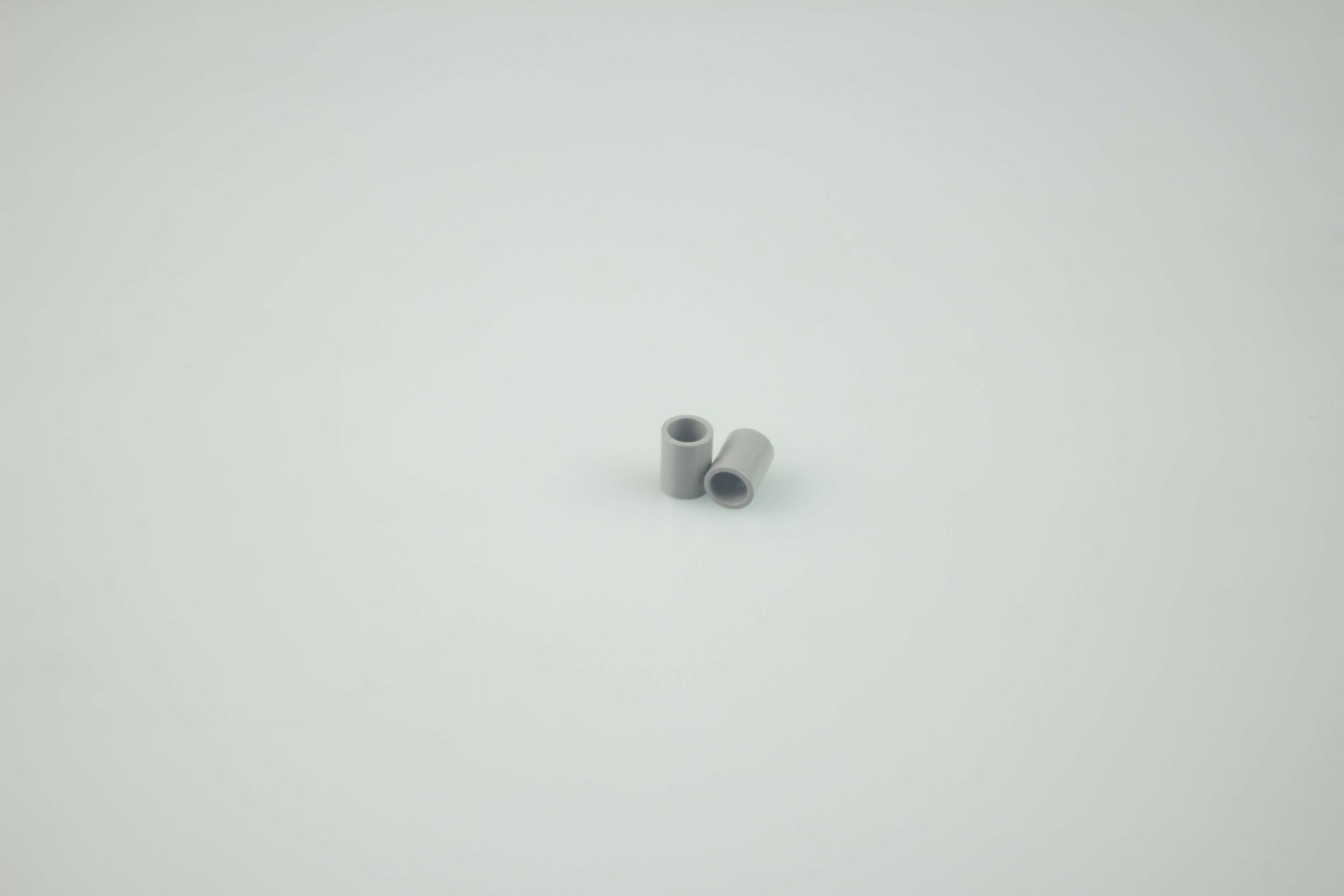

Bonded NdFeB magnets are primarily made by mixing NdFeB alloy powder with epoxy resin and then pressing it. They possess the following characteristics: 1. High magnetic properties: Magnetic properties fall between those of sintered NdFeB magnets and ferrite magnets, exhibiting good consistency and stability. 2. High dimensional accuracy and high shape freedom: Product shape and dimensions are guaranteed by molds, allowing direct molding into free shapes such as rings, tiles, and blocks, without the need for sintering or post-machining. 3. Excellent corrosion resistance: After electrophoretic coating or some special treatments, they can be used for extended periods in everyday or harsh environments. 4. Flexible and diverse magnetization: Magnetic poles can be magnetized into multi-pole, oblique, and radial configurations; magnetized surfaces can be inner circles, outer circles, end faces, or composite magnetization; waveforms can be square waves or sine waves. Bonded NdFeB magnets are mainly used in various micro-motors, such as spindle motors, stepper motors, synchronous motors, dc motors, and brushless dc motors, and are also widely used in various sensor devices. It can partially replace sintered NdFeB magnets and ferrite magnets, making the motor assembly process simpler, more reliable, lower in cost, and more efficient.
| PropertyGrade | BNP-2 | BNP-3 | BNP-4 | BNP-5 | BNP-6 | BNP-7 | BNP-8 | BNP-9 |
|---|---|---|---|---|---|---|---|---|
| Br (mT) Residual Induction(kGs) |
300-400 | 400-510 | 460-520 | 470-550 | 550-650 | 550-650 | 620-670 | 650-700 |
| 3.0-4.0 | 4.0-5.1 | 4.6-5.2 | 4.7-5.5 | 5.5-6.5 | 5.5-6.5 | 6.2-6.7 | 6.5-7.0 | |
| Hcb (kA/m) Coercive Force(kOe) |
160-240 | 216-280 | 224-288 | 240-360 | 320-376 | 320-408 | 400-456 | 416-456 |
| 2.3-3.0 | 2.7-3.5 | 2.8-3.6 | 3.0-4.5 | 4.0-4.7 | 4.0-5.1 | 5.0-5.7 | 5.2-5.7 | |
| Hcj (kA/m) Intrinsic Coercive Force(kOe) |
440-600 | 504-680 | 504-680 | 520-680 | 600-720 | 560-680 | 640-800 | 680-800 |
| 5.5-7.5 | 6.3-8.5 | 6.3-8.5 | 6.5-8.5 | 7.5-9.0 | 7.0-8.5 | 8.0-10.0 | 8.5-10.0 | |
| (BH)max (kJ/m3) Max. Energy Product(MGOe) |
19-26 | 24-32 | 30-35 | 37-44 | 44-52 | 52-64 | 64-76 | 68-76 |
| 2.4-3.3 | 3.3-4.0 | 3.8-4.4 | 4.7-5.5 | 5.5-6.5 | 6.5-8.0 | 8.0-9.5 | 8.5-9.5 | |
| ρ (g/cm3) Density | 5.6-6.0 | 5.6-6.0 | 5.6-6.0 | 5.6-6.0 | 5.6-6.0 | 5.6-6.0 | 5.8-6.2 | 5.8-6.2 |
| μr Recoil Permeability (μH/M) |
1.20 | 1.20 | 1.20 | 1.20 | 1.20 | 1.20 | 1.20 | 1.20 |
| (%/°C) Temperature Coefficient of Br |
-0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 |
| Curie Temperature | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 350 |
| Tw (°C) Max.Operating Temperature |
160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Property Grade | BNP-9H | BNP-10H | BNP-10 | BNP-11 | BNP-12D | BNP-12L | BNP-13L |
|---|---|---|---|---|---|---|---|
| Br (mT) Residual Induction(kGs) |
650-700 | 650-710 | 670-720 | 680-740 | 720-770 | 730-770 | 780-830 |
| 6.5-7.0 | 6.5-7.1 | 6.7-7.2 | 6.8-7.4 | 7.2-7.7 | 7.3-7.7 | 7.8-8.3 | |
| Hcb (kA/m) Coercive Force(kOe) |
432-488 | 432-480 | 424-480 | 400-480 | 440-520 | 368-432 | 400-480 |
| 5.4-6.1 | 5.4-6.0 | 5.3-6.0 | 5.6-6.0 | 5.5-6.5 | 4.6-5.4 | 5.0-6.0 | |
| Hcj (kA/m) Intrinsic Coercive Force(kOe) |
920-1040 | 784-960 | 640-800 | 640-800 | 720-880 | 520-640 | 480-640 |
| 11.5-13.0 | 9.8-12.0 | 8.0-10.0 | 8.0-10.0 | 9.0-11.0 | 6.5-8.0 | 6.0-8.0 | |
| (BH)max (kJ/m3) Max. Energy Product(MGOe) |
71-80 | 74-82 | 76-84 | 80-88 | 88-96 | 80-88 | 88-104 |
| 8.9-10.0 | 9.3-10.3 | 9.5-10.5 | 10.0-11.0 | 11.0-12.0 | 10.0-11.0 | 11.0-13.0 | |
| ρ (g/cm3) Density | 5.8-6.1 | 5.8-6.1 | 5.8-6.2 | 6.0-6.2 | 6.1-6.3 | 6.0-6.3 | 6.1-6.4 |
| μr Recoil Permeability (μH/M) |
1.20 | 1.20 | 1.20 | 1.20 | 1.20 | 1.20 | 1.20 |
| (%/°C) Temperature Coefficient of Br |
-0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
| Curie Temperature | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
| Tw (°C) Max.Operating Temperature |
180 | 180 | 160 | 160 | 160 | 120 | 120 |
