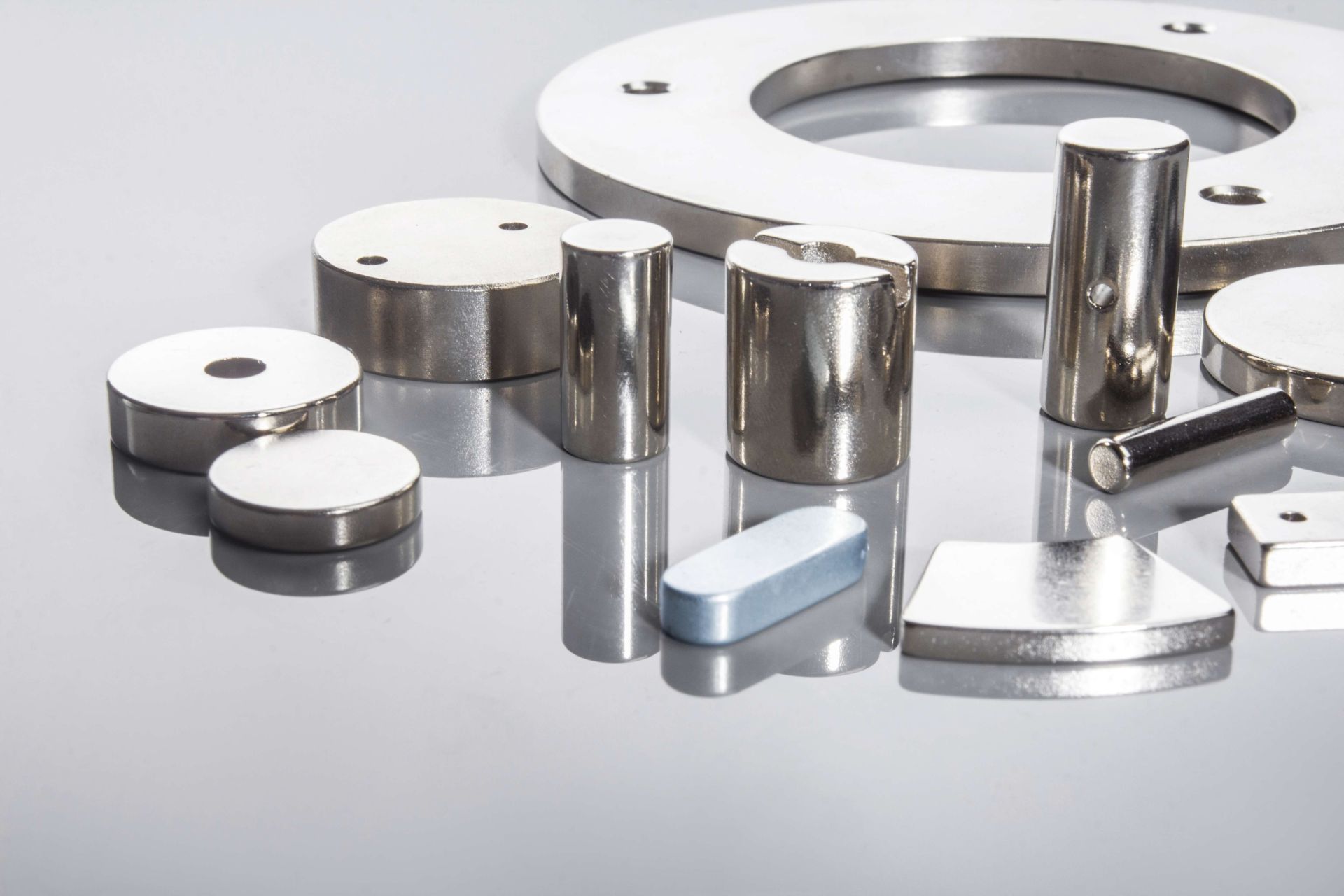

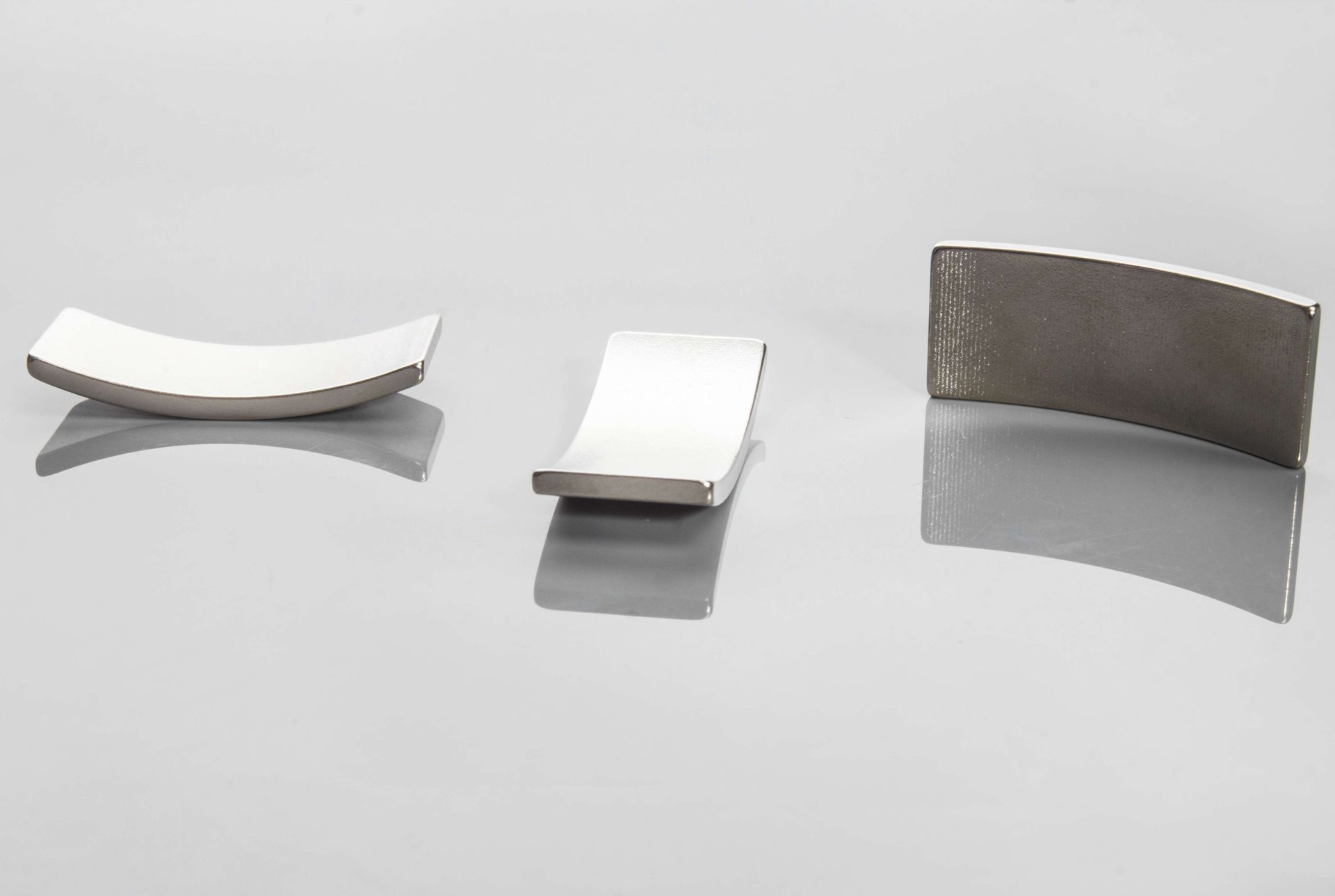

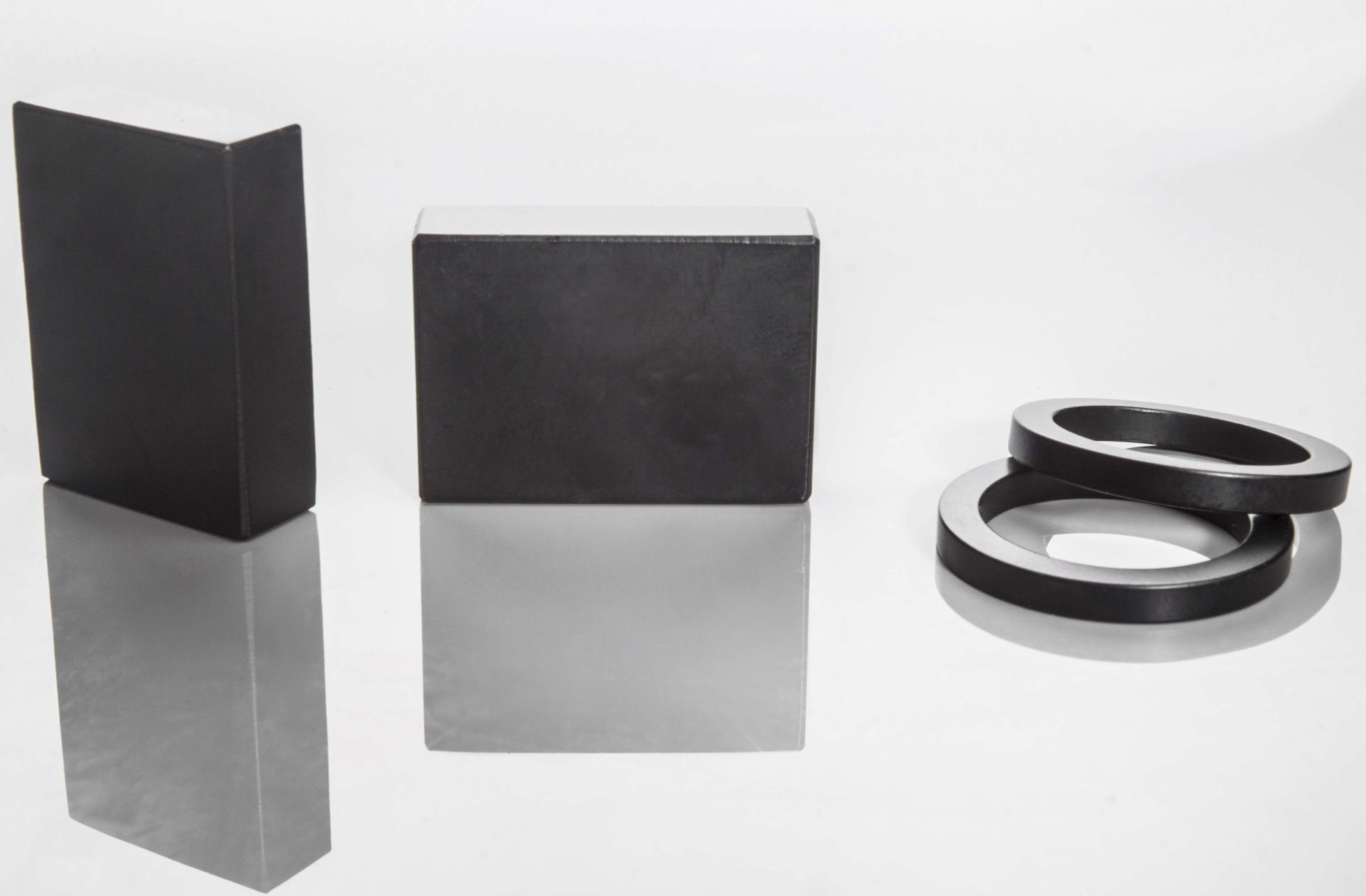

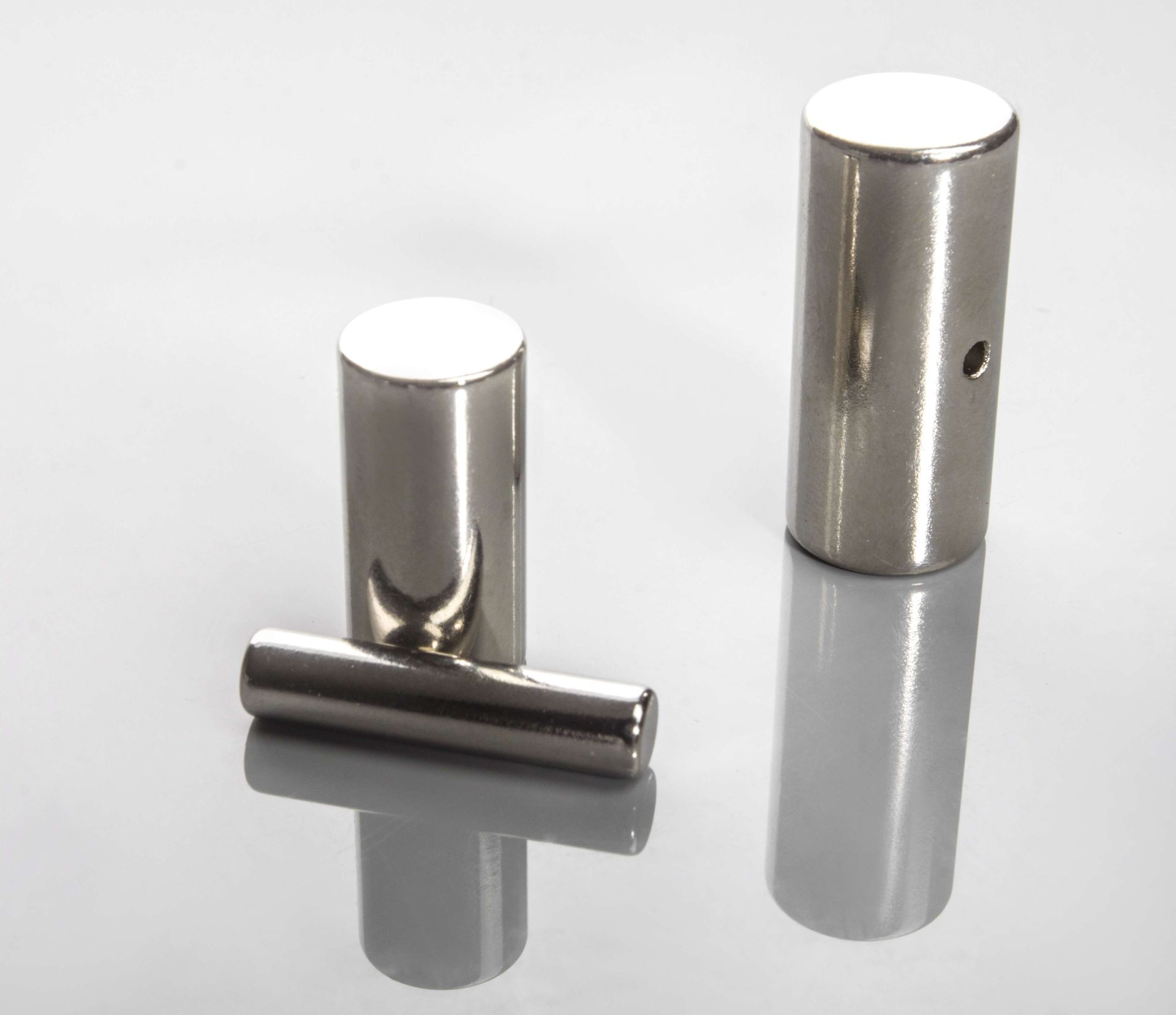

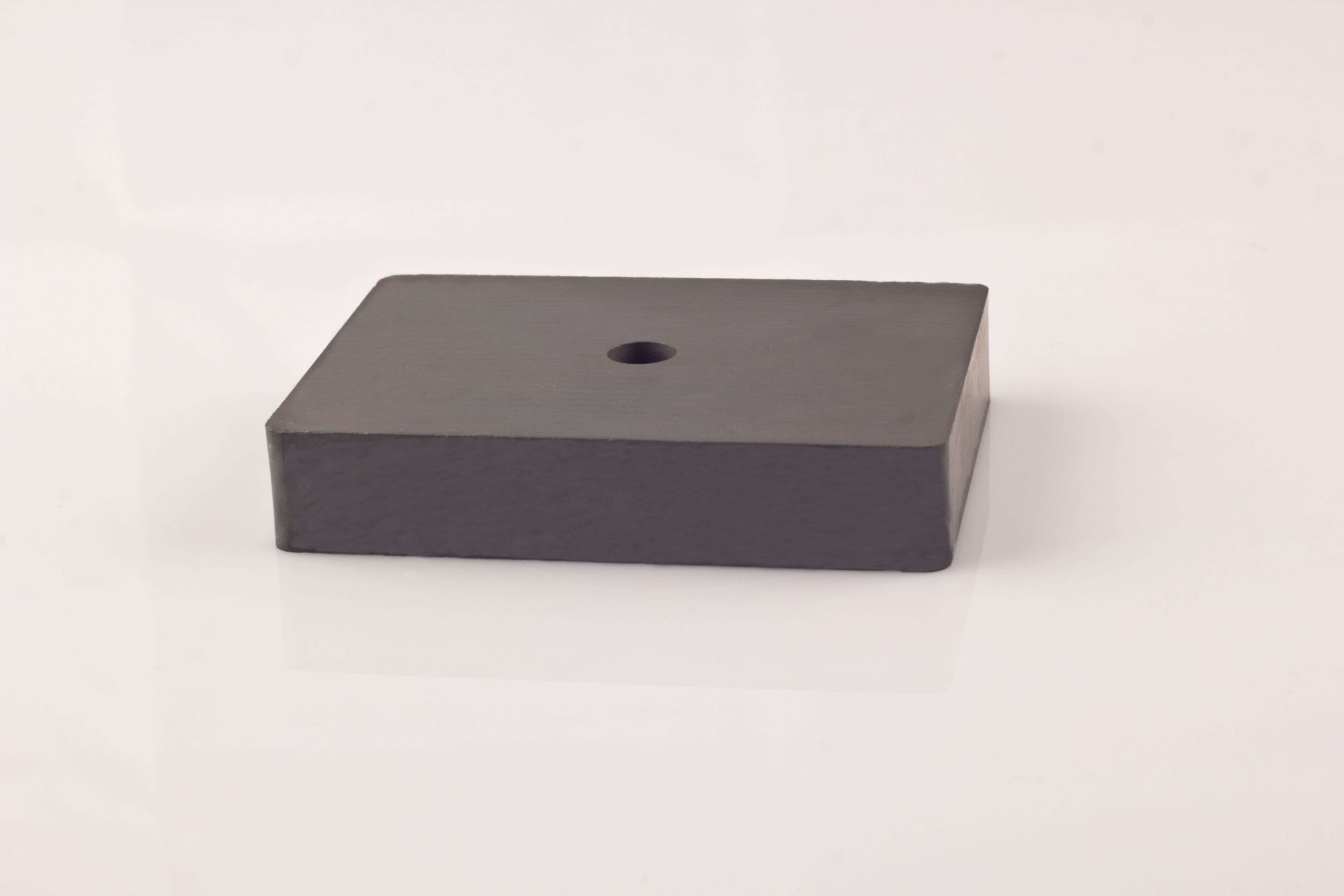

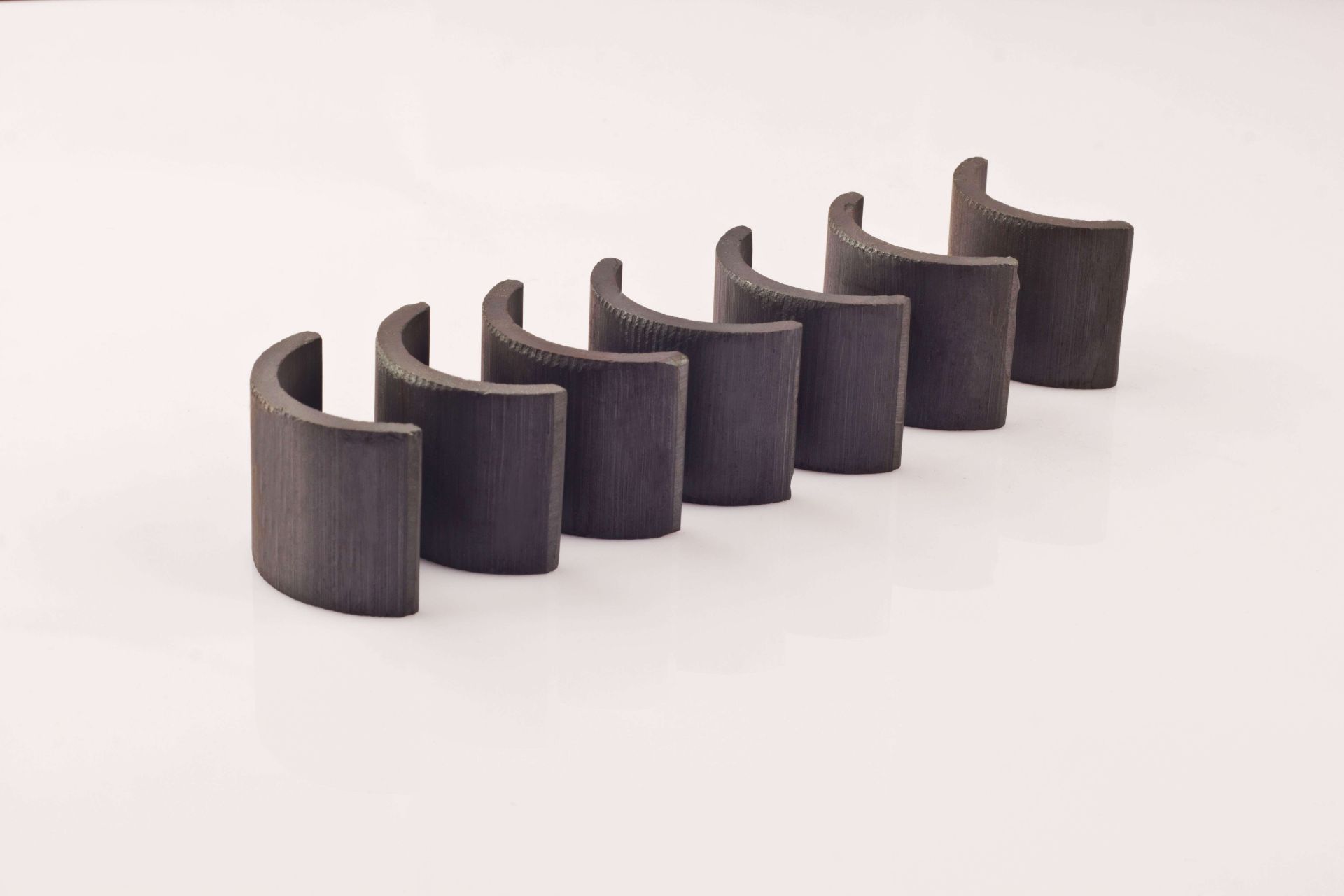

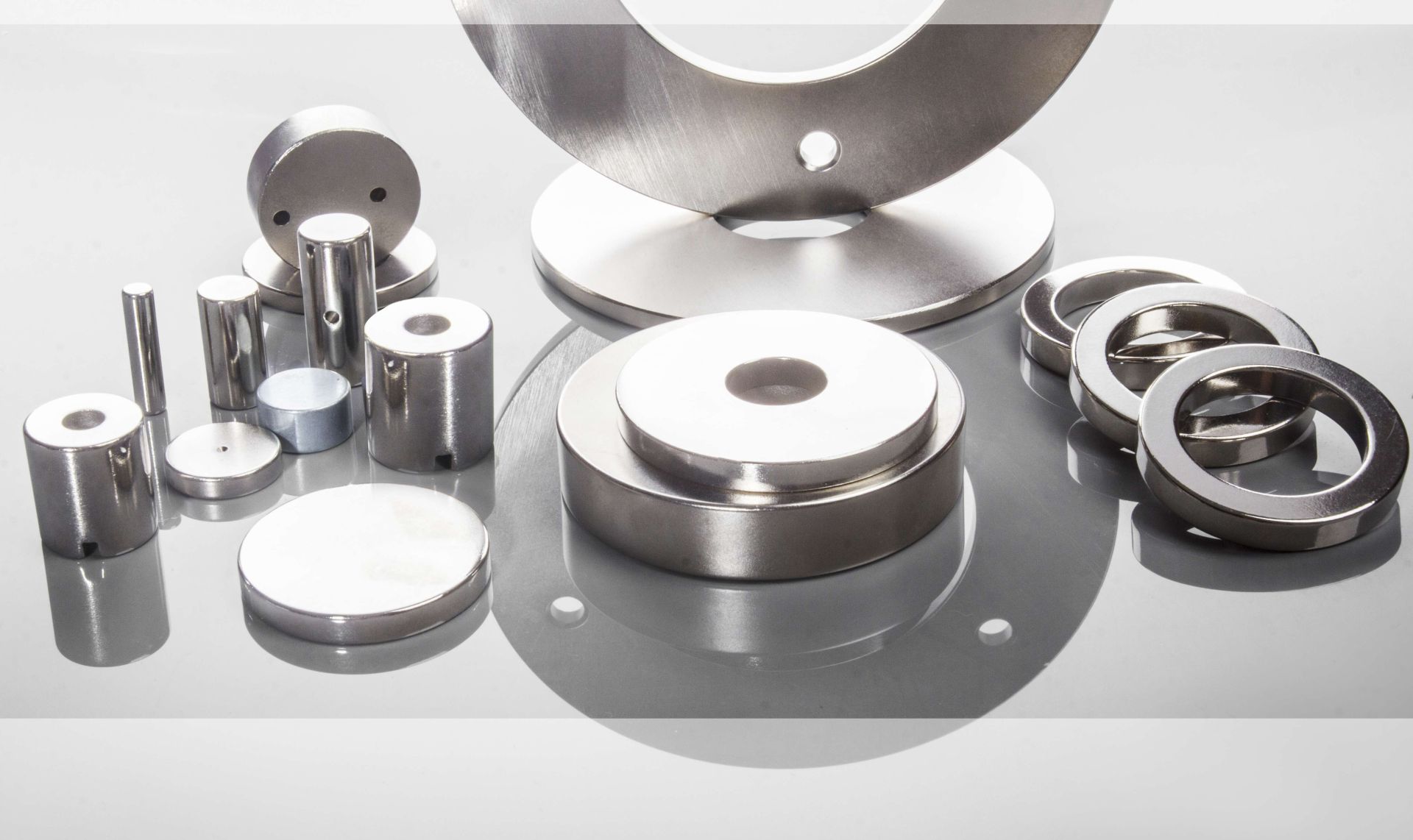

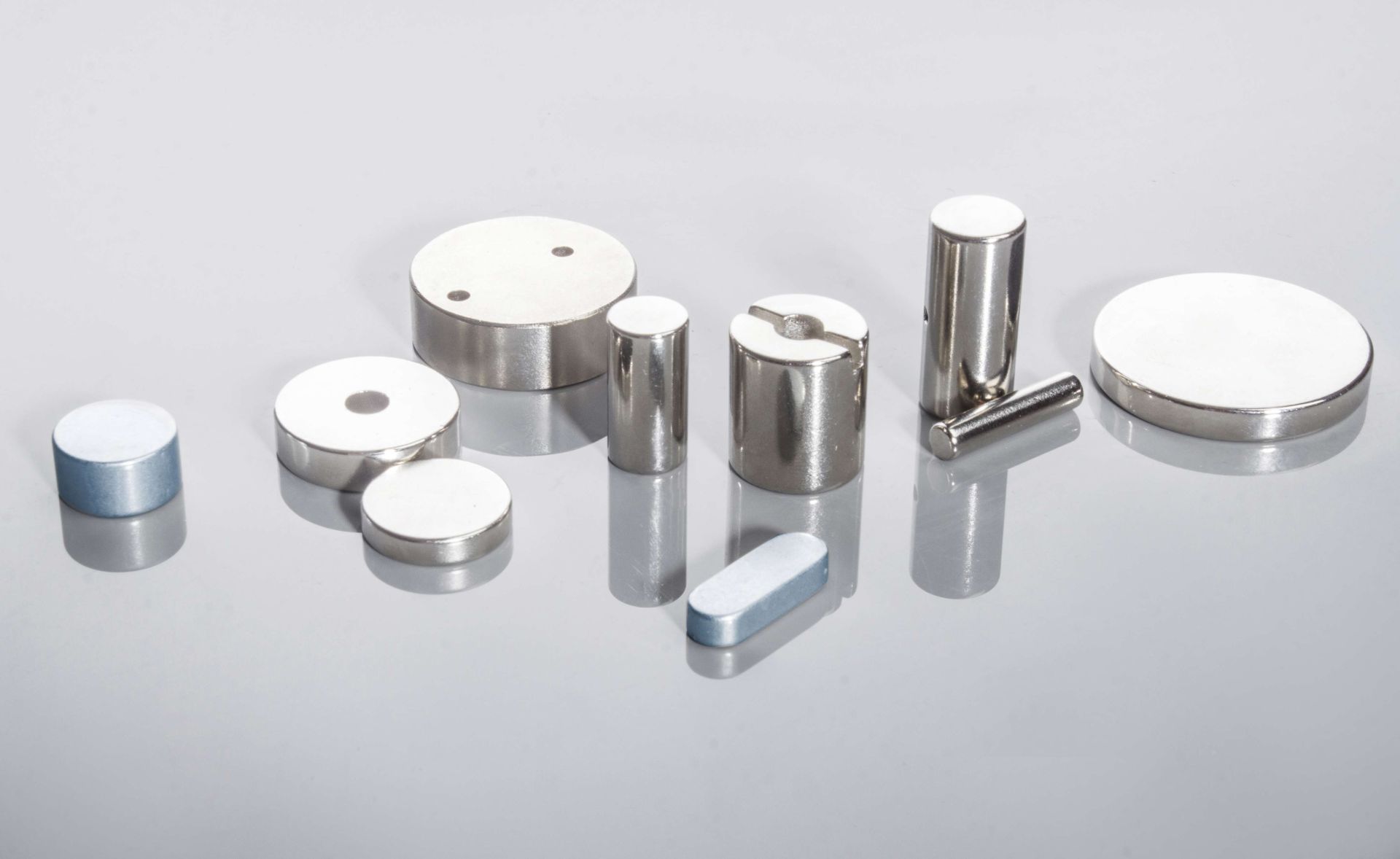

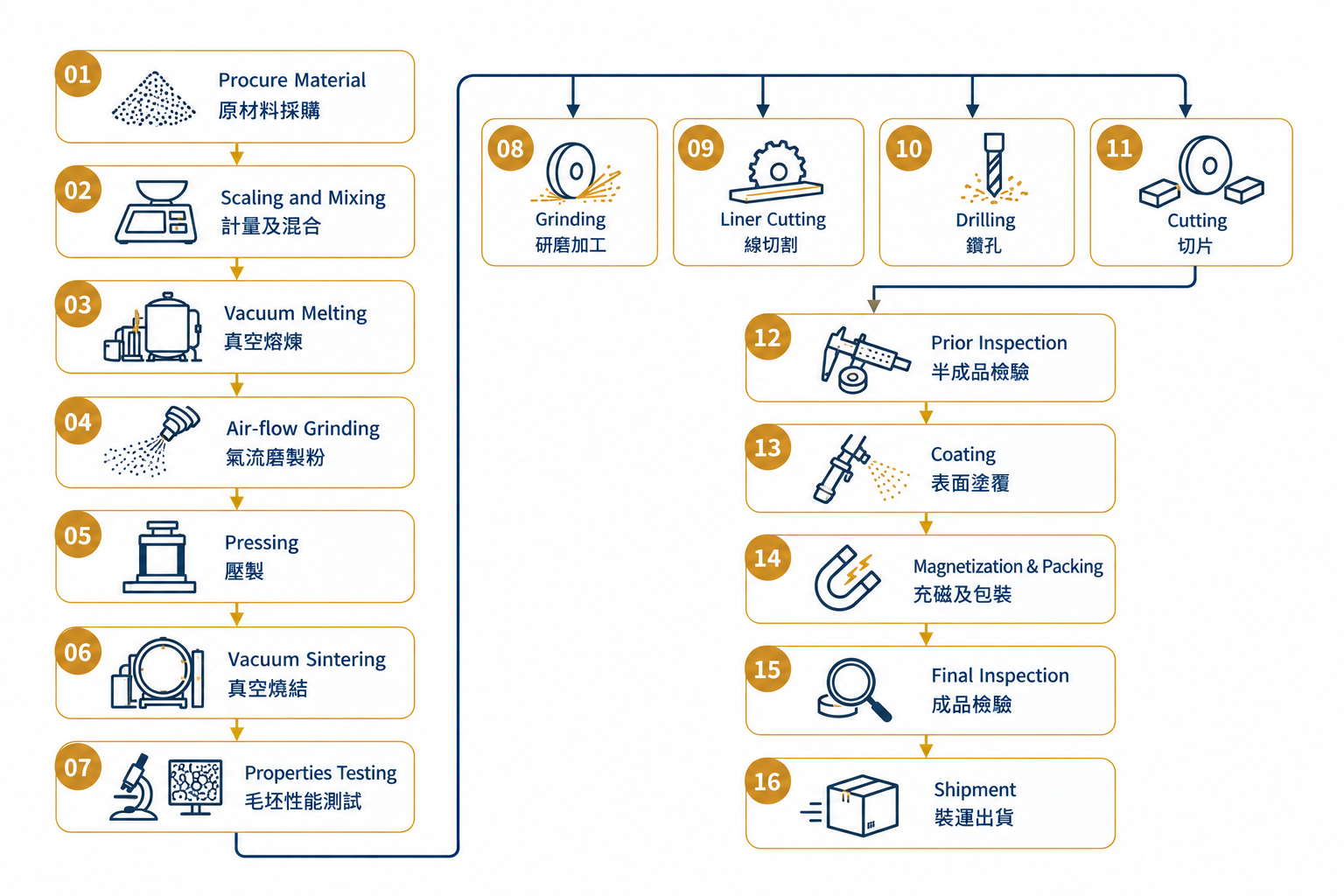

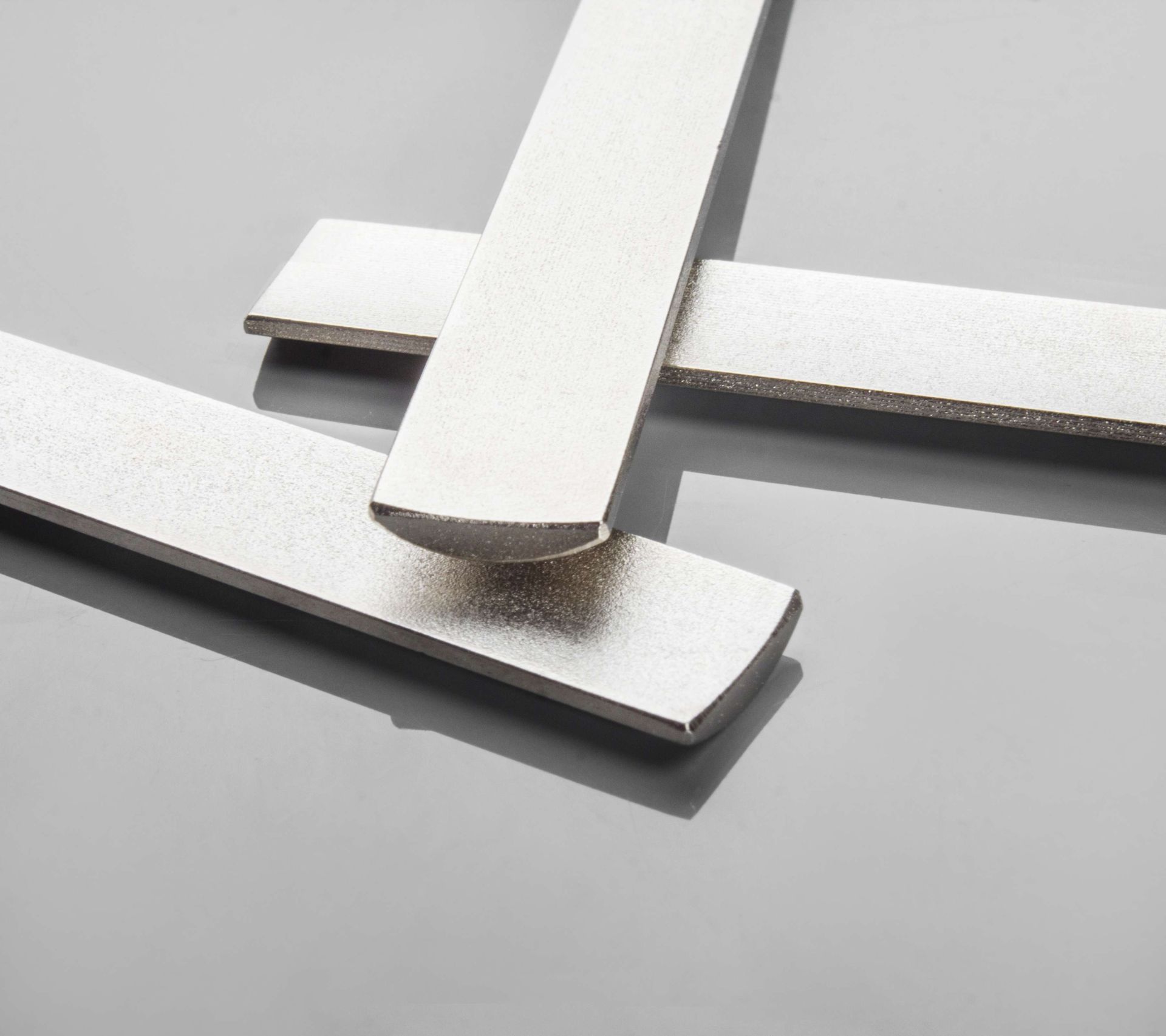

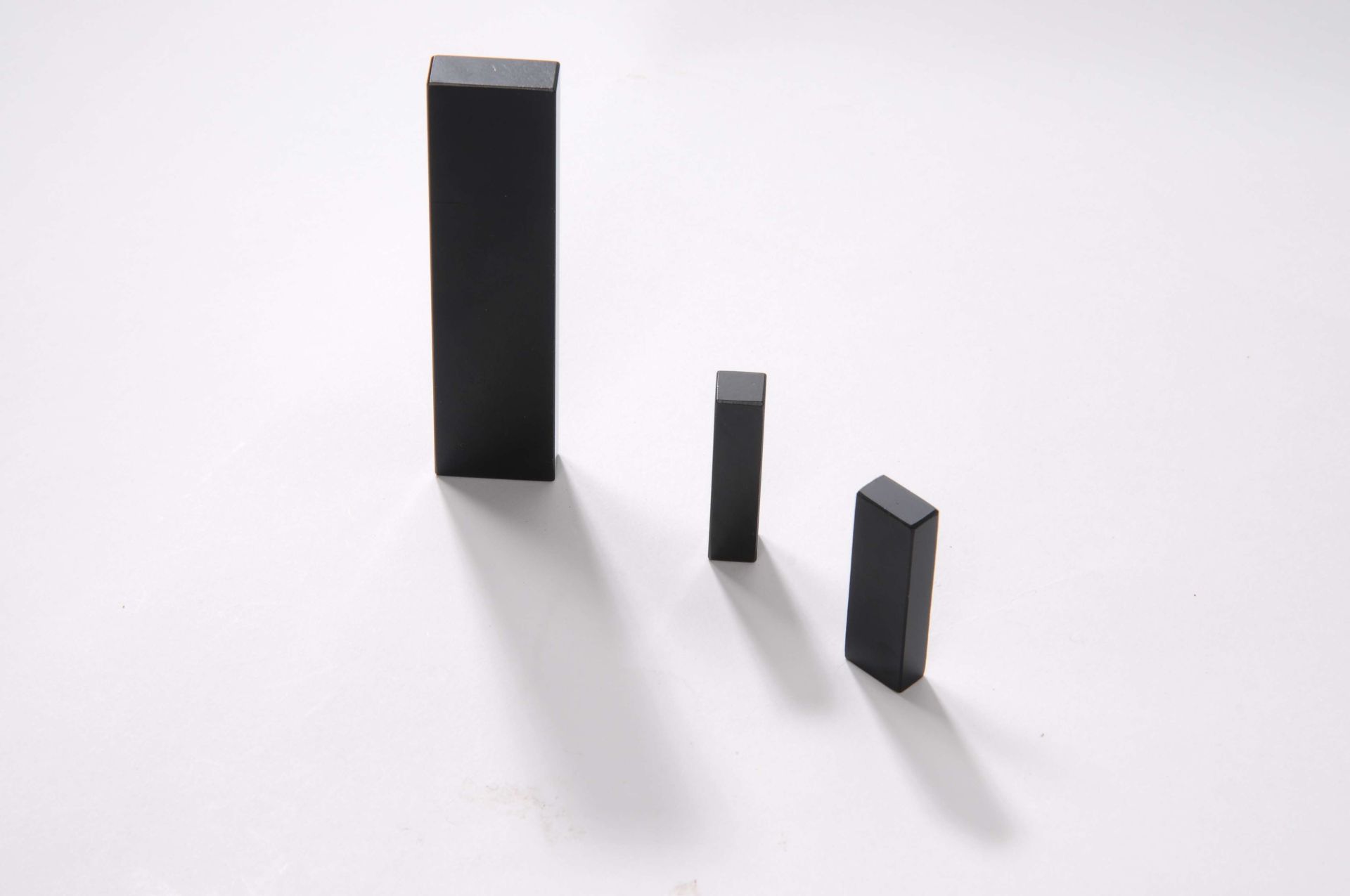

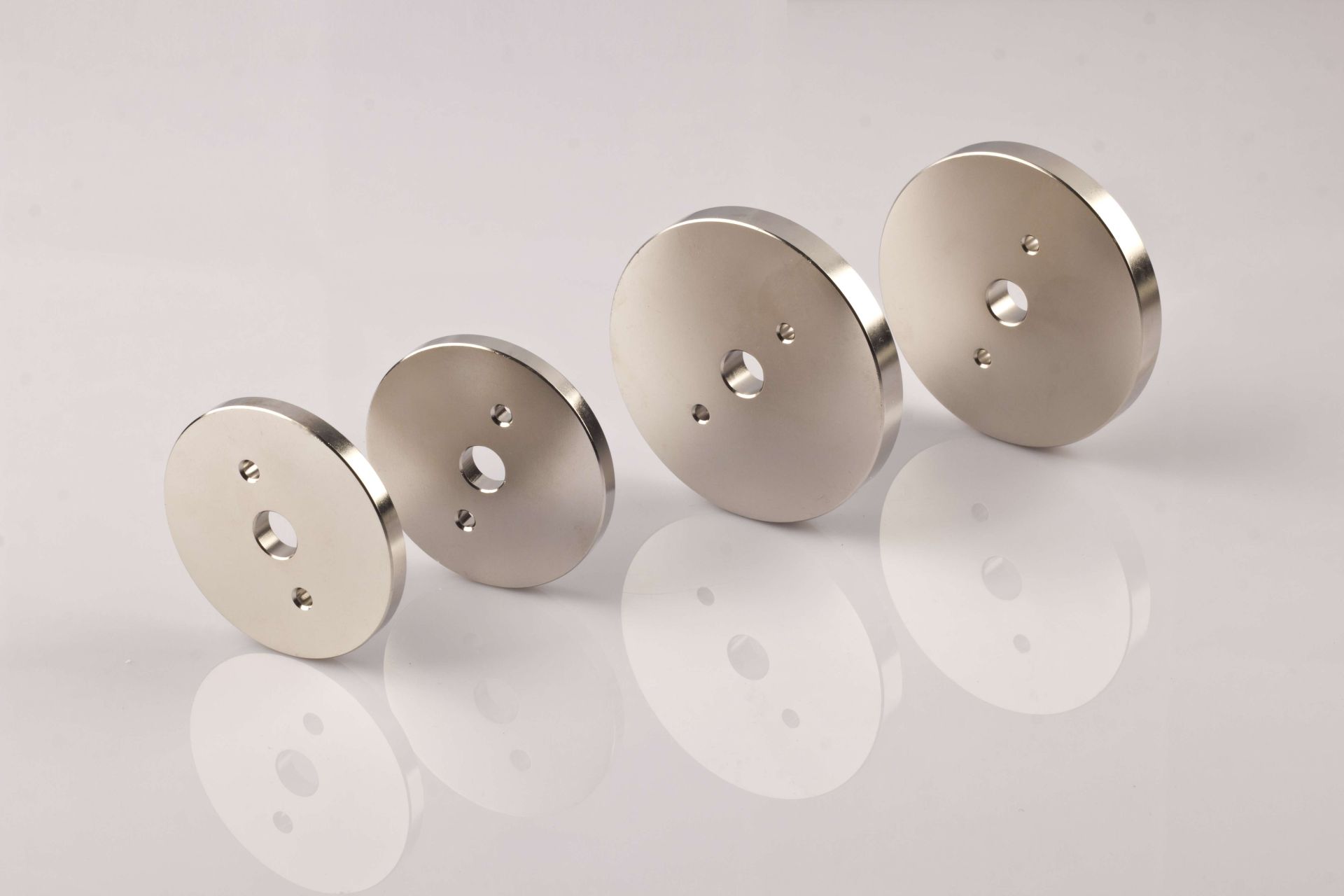

Neodymium iron boron (ndfeb) magnets are currently the most powerful magnets. They are produced by powder pressing, sintering, and processing. Because the finished product is prone to oxidation, it requires surface coating treatment, which can be achieved through various methods such as zinc plating, color zinc plating, nickel plating, gold plating, electroless nickel plating, pyrelin plating, and epoxy resin plating. Ndfeb permanent magnets possess high remanence, high coercivity, high energy product, and high performance, and are easily processed into various sizes, making them widely used in various fields, especially in modern high-tech industries. Due to their extremely high coercivity and energy product, they exhibit superior performance compared to other permanent magnets, particularly in operating environments below 200 degrees Celsius.
| Grade | Br | HcB | Hcj | (BH)max | Hk/Hcj | Max temperature | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kGs | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | % | L/D≥0.7 | |||||
| Max | Min | Max | Min | Min | Min | Min | Min | Max | Min | Max | Min | Min | ℃ | |
| N30 | 11.3 | 10.8 | 1.13 | 1.08 | ≥10.0 | ≥796 | ≥12 | ≥955 | 31 | 28 | 247 | 223 | ≥95 | ≤80 |
| N33 | 11.8 | 11.3 | 1.18 | 1.13 | ≥10.5 | ≥836 | ≥12 | ≥955 | 34 | 31 | 271 | 247 | ≥95 | ≤80 |
| N35 | 12.3 | 11.8 | 1.23 | 1.18 | ≥10.9 | ≥868 | ≥12 | ≥955 | 36 | 33 | 287 | 263 | ≥95 | ≤80 |
| N38 | 12.6 | 12.3 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥12 | ≥955 | 39 | 36 | 311 | 287 | ≥95 | ≤80 |
| N40 | 12.9 | 12.6 | 1.29 | 1.26 | ≥11.6 | ≥923 | ≥12 | ≥955 | 41 | 38 | 327 | 302 | ≥95 | ≤80 |
| N42 | 13.3 | 12.9 | 1.33 | 1.29 | ≥12 | ≥955 | ≥12 | ≥955 | 43 | 40 | 342 | 318 | ≥95 | ≤80 |
| N45 | 13.7 | 13.3 | 1.37 | 1.33 | ≥12.5 | ≥995 | ≥12 | ≥955 | 46 | 43 | 366 | 342 | ≥95 | ≤80 |
| N48 | 14.0 | 13.7 | 1.40 | 1.37 | ≥12.9 | ≥1027 | ≥12 | ≥955 | 47 | 45 | 374 | 358 | ≥95 | ≤80 |
| N50 | 14.3 | 14.0 | 1.43 | 1.40 | ≥13.1 | ≥1043 | ≥12 | ≥955 | 49 | 47 | 390 | 374 | ≥95 | ≤80 |
| N52 | 14.5 | 14.3 | 1.45 | 1.43 | ≥13.3 | ≥1059 | ≥12 | ≥955 | 51 | 49 | 406 | 390 | ≥95 | ≤80 |
| N54 | 14.6 | 14.4 | 1.46 | 1.44 | ≥13.6 | ≥1083 | ≥12 | ≥955 | 52 | 51 | 414 | 406 | ≥95 | ≤80 |
| N56 | 14.8 | 14.6 | 1.48 | 1.46 | ≥13.7 | ≥1091 | ≥11 | ≥876 | 53 | 51 | 422 | 406 | ≥95 | ≤70 |
| 30M | 11.3 | 10.8 | 1.13 | 1.08 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 31 | 28 | 247 | 223 | ≥95 | ≤100 |
| 33M | 11.8 | 11.3 | 1.18 | 1.13 | ≥10.5 | ≥836 | ≥14 | ≥1114 | 34 | 31 | 271 | 247 | ≥95 | ≤100 |
| 35M | 12.3 | 11.8 | 1.23 | 1.18 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 36 | 33 | 287 | 263 | ≥95 | ≤100 |
| 38M | 12.6 | 12.3 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥14 | ≥1114 | 39 | 36 | 311 | 287 | ≥95 | ≤100 |
| 40M | 12.9 | 12.6 | 1.29 | 1.26 | ≥11.6 | ≥923 | ≥14 | ≥1114 | 41 | 38 | 327 | 302 | ≥95 | ≤100 |
| 42M | 13.3 | 12.9 | 1.33 | 1.29 | ≥12.0 | ≥955 | ≥14 | ≥1114 | 43 | 40 | 342 | 318 | ≥95 | ≤100 |
| 45M | 13.7 | 13.3 | 1.37 | 1.33 | ≥12.5 | ≥995 | ≥14 | ≥1114 | 46 | 43 | 366 | 342 | ≥95 | ≤100 |
| 48M | 14.0 | 13.7 | 1.40 | 1.37 | ≥12.9 | ≥1027 | ≥14 | ≥1114 | 47 | 45 | 374 | 358 | ≥95 | ≤100 |
| 50M | 14.3 | 14.0 | 1.43 | 1.40 | ≥13.1 | ≥1043 | ≥14 | ≥1114 | 49 | 47 | 390 | 374 | ≥95 | ≤100 |
| 52M | 14.5 | 14.3 | 1.45 | 1.43 | ≥13.3 | ≥1058 | ≥14 | ≥1114 | 51 | 49 | 406 | 390 | ≥95 | ≤100 |
| 54M | 14.6 | 14.4 | 1.46 | 1.44 | ≥13.6 | ≥1082 | ≥14 | ≥1114 | 52 | 51 | 414 | 406 | ≥95 | ≤100 |
| 30H | 11.3 | 10.8 | 1.13 | 1.08 | ≥10.0 | ≥796 | ≥17 | ≥1353 | 31 | 28 | 247 | 223 | ≥95 | ≤120 |
| 33H | 11.8 | 11.3 | 1.18 | 1.13 | ≥10.5 | ≥836 | ≥17 | ≥1353 | 34 | 31 | 271 | 247 | ≥95 | ≤120 |
| 35H | 12.3 | 11.8 | 1.23 | 1.18 | ≥10.9 | ≥868 | ≥17 | ≥1353 | 36 | 33 | 287 | 263 | ≥95 | ≤120 |
| 38H | 12.6 | 12.3 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥17 | ≥1353 | 39 | 36 | 311 | 287 | ≥95 | ≤120 |
| 40H | 12.9 | 12.6 | 1.29 | 1.26 | ≥11.6 | ≥923 | ≥17 | ≥1353 | 41 | 38 | 327 | 302 | ≥95 | ≤120 |
| 42H | 13.3 | 12.9 | 1.33 | 1.29 | ≥12.0 | ≥955 | ≥17 | ≥1353 | 43 | 40 | 342 | 318 | ≥95 | ≤120 |
| 45H | 13.7 | 13.3 | 1.37 | 1.33 | ≥12.5 | ≥995 | ≥17 | ≥1353 | 46 | 43 | 366 | 342 | ≥95 | ≤120 |
| 48H | 14.0 | 13.7 | 1.40 | 1.37 | ≥12.9 | ≥1027 | ≥17 | ≥1353 | 47 | 45 | 374 | 358 | ≥95 | ≤120 |
| 50H | 14.3 | 14.0 | 1.43 | 1.40 | ≥13 | ≥1034 | ≥17 | ≥1350 | 49 | 47 | 390 | 374 | ≥95 | ≤120 |
| 52H | 14.5 | 14.3 | 1.45 | 1.43 | ≥13.3 | ≥1058 | ≥17 | ≥1350 | 51 | 49 | 406 | 390 | ≥95 | ≤120 |
| 30SH | 11.4 | 10.8 | 1.14 | 1.08 | ≥10.1 | ≥804 | ≥20 | ≥1592 | 31 | 28 | 247 | 223 | ≥93 | ≤150 |
| 33SH | 11.8 | 11.4 | 1.18 | 1.14 | ≥10.6 | ≥844 | ≥20 | ≥1592 | 34 | 31 | 271 | 247 | ≥93 | ≤150 |
| 35SH | 12.3 | 11.8 | 1.23 | 1.18 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 36 | 33 | 287 | 263 | ≥93 | ≤150 |
| 38SH | 12.6 | 12.3 | 1.26 | 1.23 | ≥11.4 | ≥907 | ≥20 | ≥1592 | 39 | 36 | 311 | 287 | ≥93 | ≤150 |
| 40SH | 12.9 | 12.6 | 1.29 | 1.26 | ≥11.6 | ≥939 | ≥20 | ≥1592 | 41 | 38 | 326 | 302 | ≥93 | ≤150 |
| 42SH | 13.3 | 12.9 | 1.33 | 1.29 | ≥12.4 | ≥987 | ≥20 | ≥1592 | 43 | 40 | 342 | 318 | ≥93 | ≤150 |
| 45SH | 13.7 | 13.2 | 1.37 | 1.32 | ≥12.6 | ≥1003 | ≥20 | ≥1592 | 46 | 42 | 366 | 334 | ≥93 | ≤150 |
| 48SH | 14.0 | 13.7 | 1.40 | 1.37 | ≥12.9 | ≥1027 | ≥20 | ≥1592 | 47 | 45 | 374 | 358 | ≥93 | ≤150 |
| 50SH | 14.3 | 14.0 | 1.43 | 1.40 | ≥13 | ≥1034 | ≥20 | ≥1592 | 49 | 47 | 390 | 374 | ≥93 | ≤150 |
| 52SH | 14.5 | 14.3 | 1.45 | 1.43 | ≥13.3 | ≥1058 | ≥20 | ≥1592 | 51 | 49 | 406 | 390 | ≥93 | ≤150 |
| 28UH | 10.8 | 10.4 | 1.08 | 1.04 | ≥9.6 | ≥764 | ≥25 | ≥1989 | 29 | 26 | 231 | 207 | 92(80) | ≤180 |
| 30UH | 11.4 | 10.8 | 1.14 | 1.08 | ≥10.1 | ≥804 | ≥25 | ≥1989 | 31 | 28 | 247 | 223 | 92(80) | ≤180 |
| 33UH | 11.8 | 11.4 | 1.18 | 1.14 | ≥10.7 | ≥852 | ≥25 | ≥1989 | 34 | 31 | 271 | 247 | 92(80) | ≤180 |
| 35UH | 12.3 | 11.8 | 1.23 | 1.18 | ≥10.8 | ≥860 | ≥25 | ≥1989 | 36 | 33 | 287 | 263 | 92(80) | ≤180 |
| 38UH | 12.6 | 12.3 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥25 | ≥1989 | 39 | 36 | 311 | 287 | 92(80) | ≤180 |
| 40UH | 12.9 | 12.7 | 1.29 | 1.27 | ≥11.3 | ≥899 | ≥25 | ≥1989 | 41 | 38 | 326 | 302 | 92(80) | ≤180 |
| 42UH | 13.3 | 12.9 | 1.33 | 1.29 | ≥11.6 | ≥923 | ≥25 | ≥1989 | 43 | 41 | 342 | 326 | 92(80) | ≤180 |
| 45UH | 13.7 | 13.5 | 1.37 | 1.35 | ≥12.5 | ≥995 | ≥25 | ≥1989 | 46 | 43 | 366 | 342 | 92(80) | ≤180 |
| 28EH | 10.8 | 10.4 | 1.08 | 1.04 | ≥9.8 | ≥780 | ≥30 | ≥2388 | 29 | 26 | 231 | 207 | ≥90 | ≤200 |
| 30EH | 11.4 | 10.8 | 1.14 | 1.08 | ≥10.1 | ≥804 | ≥30 | ≥2388 | 31 | 28 | 247 | 223 | ≥90 | ≤200 |
| 33EH | 11.8 | 11.4 | 1.18 | 1.14 | ≥10.3 | ≥820 | ≥30 | ≥2388 | 34 | 31 | 271 | 247 | ≥90 | ≤200 |
| 35EH | 12.3 | 11.7 | 1.23 | 1.17 | ≥10.5 | ≥836 | ≥30 | ≥2388 | 36 | 33 | 287 | 263 | ≥90 | ≤200 |
| 38EH | 12.6 | 12.3 | 1.26 | 1.23 | ≥11.3 | ≥899 | ≥30 | ≥2388 | 39 | 36 | 311 | 287 | ≥90 | ≤200 |
| 40EH | 12.9 | 12.5 | 1.29 | 1.25 | ≥11.3 | ≥899 | ≥30 | ≥2388 | 41 | 38 | 326 | 302 | ≥90 | ≤200 |
| 42EH | 13.3 | 12.8 | 1.33 | 1.28 | ≥11.6 | ≥923 | ≥30 | ≥2388 | 43 | 40 | 342 | 318 | ≥90 | ≤200 |
| 45EH | 13.7 | 13.2 | 1.37 | 1.32 | ≥12.5 | ≥995 | ≥30 | ≥2388 | 46 | 42 | 366 | 334 | ≥90 | ≤200 |
| 28AH | 10.9 | 10.4 | 1.09 | 1.04 | ≥9.8 | ≥780 | ≥35 | ≥2785 | 29 | 26 | 231 | 207 | ≥90 | ≤230 |
| 30AH | 11.3 | 10.8 | 1.13 | 1.08 | ≥10.1 | ≥804 | ≥35 | ≥2785 | 31 | 28 | 247 | 223 | ≥90 | ≤230 |
| 33AH | 11.8 | 11.3 | 1.18 | 1.13 | ≥10.3 | ≥820 | ≥35 | ≥2785 | 34 | 31 | 271 | 247 | ≥90 | ≤230 |
| 35AH | 12.3 | 11.7 | 1.23 | 1.17 | ≥10.5 | ≥860 | ≥35 | ≥2785 | 36 | 33 | 287 | 263 | ≥90 | ≤230 |
| 38AH | 12.6 | 12.2 | 1.26 | 1.22 | ≥11.3 | ≥899 | ≥35 | ≥2785 | 39 | 35 | 311 | 278 | ≥90 | ≤230 |
| Note: 1. The above magnetic properties parameters were tested at room temperature of 20℃~23℃. 2. The squareness in grades N, M, H, SH, and UH is the judgment standard for ATM-4 equipment, and is the test judgment standard for NIM-2000 and Hirst equipment of the National Institute of Metrology. |
||||||||||||||
| Grade | Br | HcB | Hcj | (BH)max | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kGs | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | ||||||
| Max | Min | Max | Min | Min | Min | Min | Min | Max | Min | Max | Min | ||
| G50SH | 14.4 | 13.9 | 1.44 | 1.39 | 13.0 | 1035 | 20 | 1592 | 50 | 47 | 398 | 374 | |
| G50SHT | 14.4 | 13.9 | 1.44 | 1.39 | 13.0 | 1035 | 22 | 1751 | 50 | 47 | 398 | 374 | |
| G52SH | 14.6 | 14.2 | 1.46 | 1.42 | 13.2 | 1050 | 20 | 1592 | 52 | 49 | 414 | 390 | |
| G52SHT | 14.6 | 14.2 | 1.46 | 1.42 | 13.2 | 1050 | 22 | 1751 | 52 | 49 | 414 | 390 | |
| G45UH | 13.7 | 13.2 | 1.37 | 1.32 | 12.4 | 987 | 25 | 2149 | 46 | 42 | 366 | 334 | |
| G45UHT | 13.7 | 13.2 | 1.37 | 1.32 | 12.4 | 987 | 27 | 2149 | 46 | 42 | 366 | 334 | |
| G48UH | 14.0 | 13.6 | 1.40 | 1.36 | 12.7 | 1011 | 25 | 1990 | 48 | 45 | 382 | 358 | |
| G48UHT | 14.0 | 13.6 | 1.40 | 1.36 | 12.7 | 1011 | 27 | 2149 | 48 | 45 | 382 | 358 | |
| G50UH | 14.4 | 13.9 | 1.44 | 1.39 | 13.0 | 1035 | 25 | 1990 | 50 | 47 | 398 | 374 | |
| G42EHT | 13.3 | 12.8 | 1.33 | 1.28 | 12.0 | 955 | 32 | 2547 | 43 | 40 | 342 | 318 | |
| G45EH | 13.7 | 13.2 | 1.37 | 1.32 | 12.4 | 987 | 30 | 2388 | 46 | 42 | 366 | 334 | |
| G45EHT | 13.7 | 13.2 | 1.37 | 1.32 | 12.4 | 987 | 32 | 2547 | 46 | 42 | 366 | 334 | |
| G38AHT | 12.6 | 12.1 | 1.26 | 1.21 | 11.8 | 939 | 37 | 2945 | 39 | 35 | 310 | 278 | |
| G40AH | 12.9 | 12.5 | 1.29 | 1.25 | 12.0 | 955 | 35 | 2786 | 41 | 38 | 326 | 302 | |
| G40AHT | 12.9 | 12.5 | 1.29 | 1.25 | 12.0 | 955 | 37 | 2945 | 41 | 38 | 326 | 302 | |
| G42AH | 13.3 | 12.8 | 1.33 | 1.28 | 12.0 | 955 | 35 | 2786 | 43 | 40 | 342 | 318 | |
| Note: The above magnetic properties parameters were tested at room temperature of 20℃~23℃. | |||||||||||||
| item | Temperature coefficient %/℃(20℃~150℃) | Weightlessness Standard mg/cm2 | |||||
|---|---|---|---|---|---|---|---|
| α(Br) | β(HcJ) | ||||||
| Common brands | -(0.11~0.12) | -(0.58~0.70) | ≤80 | ||||
| "T"Brand 1) | -(0.095~0.115) | -(0.46~0.59) | ≤15 | ||||
| "L"Brand 2) | -(0.10~0.12) | -(0.55~0.65) | ≤5 | ||||
| "TL"Brand 3) | -(0.095~0.115) | -(0.46~0.59) | ≤5 | ||||
| Note 1: The "T" series products have a lower temperature coefficient and better temperature resistance compared to ordinary grades. They are suitable for H series and above grades, such as 45HT, 35SHT, and 38UHT. Note 2: The "L" grade series products have low weight loss performance. Compared with ordinary grades, they usually use special formulas and processes, resulting in less weight loss. The above weight loss standard test conditions are 121℃, 2atm, and humidity above 95% for 168 hours. Note 3: The "TL" grade combines the performance of both the "T" and "L" grade products. |
|||||||
| Parameter | Unit | Value | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vickers hardness | Hv | ≥550 | ||||||||||||
| Density | g/cm3 | ≥7.40 | ||||||||||||
| μr RecalPenmeability | \ | 1.05 | ||||||||||||
| Tc Curie point | ℃ | 312~380 | ||||||||||||
| Specific resistance | μΩ·cm | 150 | ||||||||||||
| Bending strength | MPa | 250 | ||||||||||||
| Compressive strength | MPa | 1000~1100 | ||||||||||||
| Thermal expansion | ℃-1 | - (1~3)×10-6K | ||||||||||||
| (⊥) | ||||||||||||||
| Thermal expansion | ℃-1 | (3~4)×10-6K | ||||||||||||
| (∥) | ||||||||||||||
